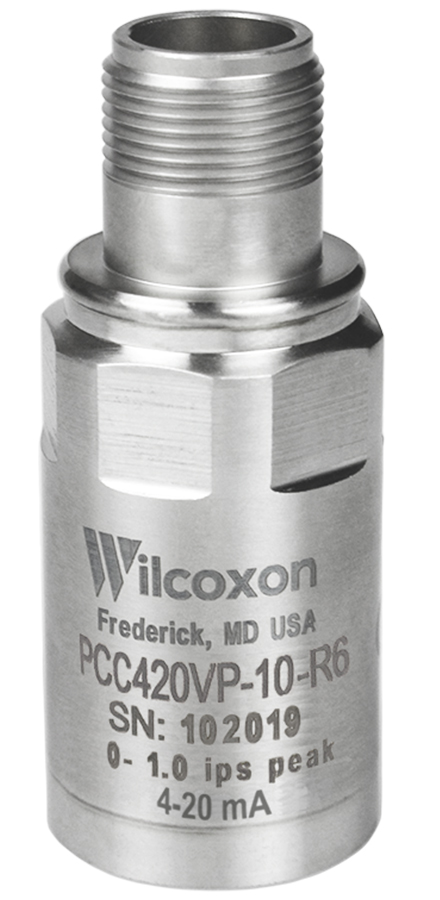

Wilcoxon Sensing Technologies PCC420V Series Vibration Sensor

The Wilcoxon Sensing Technologies PCC420V series vibration sensor provides a 4-20mA output proportional to velocity vibration, allowing for continuous trending of overall machine vibration. The top exit sensor is constructed with stainless steel and can be used for applications with height restrictions due to its compact housing. The PCC420V’s case isolated, hermetically sealed design has a 1/4-28 UNF tapped hole for mounting and a 2 pin MIL-C-5015 style connector.

The Wilcoxon Sensing Technologies PCC420V series is manufactured in an ISO 9001 facility.

Features

• Peak full scale range of 0.4 ips (10mm/sec) to 5.0 ips (127mm/sec)
• Frequency output:
  • ±10%: 10Hz to 1.0kHz
  • ±3 dB: 3.5Hz to 2.0kHz
• ±2% repeatability
• 700 Ω loop resistance
• 5% max transverse sensitivity
• 250g peak vibration limit
• 2,500g peak shock limit
