Wilcoxon Sensing Technologies 787B Series Accelerometer

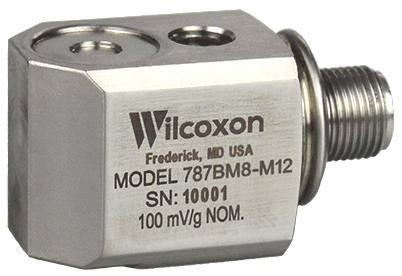

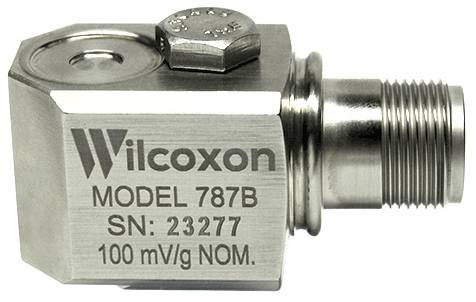

The Wilcoxon Sensing Technologies 787B series accelerometer is a low-profile, general purpose industrial sensor. It is constructed with 316L stainless steel, and is case isolated, internally shielded, and hermetically sealed. The 787B model features a 2-pin, MIL-C-5015 style output connector, an R6 type mating connector, and a 1/4-28 captive hex head screw (included) with a 0.046in diameter safety wire hole. The 787BM8-M12 model features a 4-pin, M12 style output connector and M8 thread captive screw (included) for mounting.

The 787B series also features ESD and reverse wiring protection and is manufactured in an ISO 9001 facility.

Features

• Dynamic vibration (IEPE) sensor output
• 80g peak acceleration range
• Frequency response:
  • ±10%: 1 to 5,000Hz
  • ±3 dB: 0.5 to 10,000Hz
• 22kHz resonance frequency
• 100Ω max output impedance
• 500g peak vibration limit
• 5,000g peak shock limit
• Connector:
  • 787B: MIL-C-5015 2-pin, R6 type mating connector, 1/4-28 captive screw
  • 787BM8-M12: M12 style output and mating connectors, M8 captive screw
• Hermetic sealing
• PZT ceramic / shear sensing element
