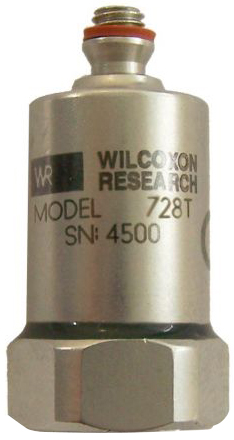

Wilcoxon Sensing Technologies 728 Series Compact High Sensitivity Accelerometer

The Wilcoxon Sensing Technologies 728 series compact high sensitivity accelerometer is designed for long-term, reliable use. It is constructed with stainless steel and features a 10-32 tapped hole for mounting with SF1 stud (included). It has a 10-32 coaxial output connector and R1 mating connector. The 728A is case grounded, and the 728T is base isolated.

The 728 series accelerometer is manufactured in an ISO 9001 facility.

Features

• Dynamic vibration (IEPE) sensor output
• Grounding:
  • 728A: Case grounded, side connector
  • 728T: Base isolated, top connector
• 500mV/g sensitivity
• ±5% sensitivity tolerance
• 15g peak acceleration range
• Frequency response:
  • ±5%: 3 to 5,000Hz
  • ±3 dB: 1 to 10,000Hz
• 24kHz resonance frequency
• 100Ω max output impedance
• 250g peak vibration limit
• 2,500g peak shock limit
