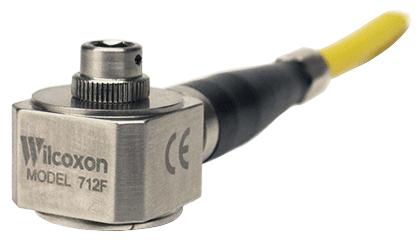

Wilcoxon Sensing Technologies 712F High Frequency Integral Cable Accelerometer

The Wilcoxon Sensing Technologies 712F high frequency integral cable accelerometer is designed for long-term, reliable use. It is corrosion-resistant, hermetically sealed, ground isolated, and constructed with 316L stainless steel.

The 712F offers two possible connector options. The 712F model has a 8-32 captive screw, and the 712F-M4 model has a M4 captive screw. Both models have a 0.047-inch diameter safety wire hole for mounting and J9T2AK, 16-foot, blunt cut integral cabling.

Features

• Dynamic vibration (IEPE) sensor output
• 100 mV/g sensitivity
• ±10% sensitivity tolerance
• 60g peak acceleration range
• Frequency response:
  • ±5%: 9 to 15,000Hz
  • ±10%: 6 to 20,000Hz
  • ±3 dB: 3 to 25,000Hz
• >45kHz resonance frequency
• 100Ω max output impedance
• ±1,000g vibration limit
• 5,000g peak shock limit
• 8-32 or M4 captive screw with 0.047″ diameter safety wire hole
