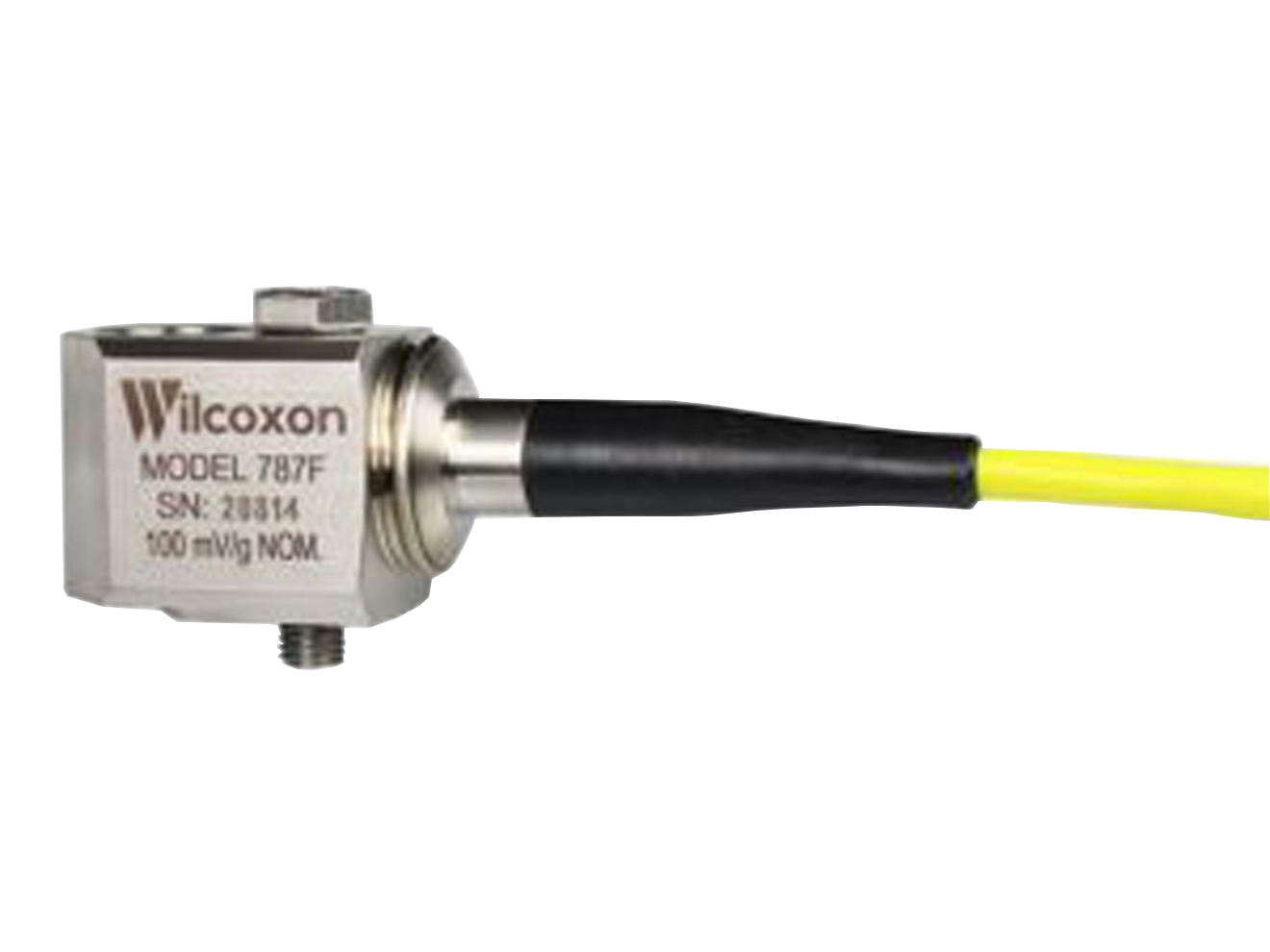

Wilcoxon General Purpose Accelerometer

The Wilcoxon general purpose accelerometer is an industrial accelerometer sensor built for general purpose use. It has a 100 mV/g sensitivity, ±5% sensitivity tolerance and is low profile with side exit 16′ J9T2A Teflon jacketed integral cable. The 787F has a 100 psi pressure rating and is case isolated.

Features

• Corrosion resistant
• Hermetic design
• 100 psi pressure rating
• ESD, EMI/RFI and reverse wiring protection
• 16 ft Integral cable
• Dynamic vibration (IEPE)
• 100 mV/g sensitivity
• ±5% sensitivity tolerance
• 0.5Hz to 10,000 Hz frequency response ±3dB
• 22 kHz resonance frequency
• -50 to 120°C temperature range
