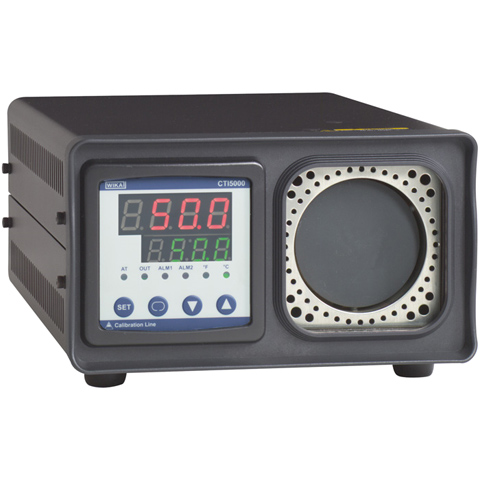

WIKA CTI5000 Infrared Calibrator

The WIKA CTI5000 Infrared Calibrator is suitable for temperatures up to 932°F (500°C). Due to its stability, the new portable infrared calibrator is particularly suited to the calibration of infrared hand-held thermometers. The black body has a large diameter so that a wide variety of infrared thermometers can be tested, no matter which lenses are fitted. The emissivity is fixed at 0.95 and the temperature can be controlled in steps of 0.1 °C. To check the black body, there is a bore located directly behind the surface so that the measurement can be made with contact and the quality monitored.

Applications for the CTI5000 include:

Testing and calibration of non-contact temperature measuring instruments
Heating source for on-site laboratories for the calibration of infrared thermometers
On-site calibration

Features

• 122 to 932°F (50 to 500 °C) application range
• Stability:
  • ±0.1 K to 212°F (100°C)
  • ±0.2 K to 662°F (350°C)
  • ±0.4 K to 932°F (500°C)
• 0.95 emissivity
• 2.24 in (57 mm) diameter of the measuring surface
• Heating time: 30 min from ambient to 932°F
• Cooling time: 40 min from 932 to 212°F
