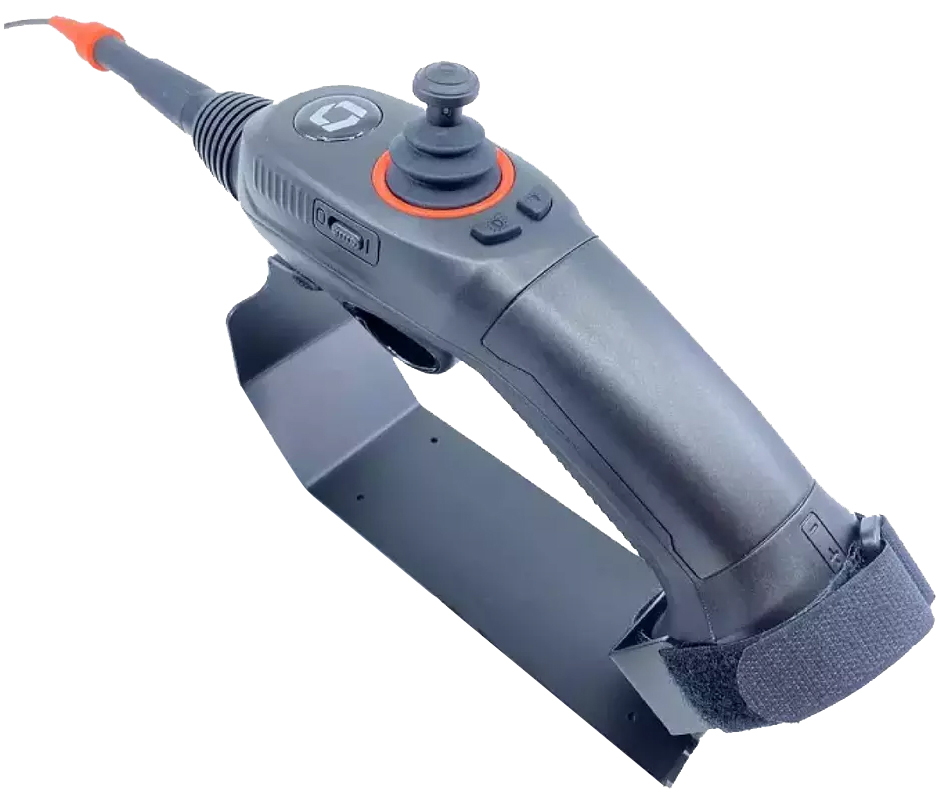

Waygate Technologies MVIQ 3.0mm 4-Way Interchangeable Probe

The Waygate Technologies MVIQ 3.0mm 4-Way Interchangeable Probe includes menu directed inspection (MDI) for increased productivity during and after an inspection, with smart data tagging and automatic report generation. The InspectionWorks Connect feature offers remote view and control capability from a tablet and real-time video collaboration. The 3.0mm probe can be interchanged easily with other MVIQ system probes, providing the whole system with small probe interchangeability.

The battery option includes a rechargeable 18650 Li-Ion battery, with a two hour run time and USB powered battery charger.

Features

• 14 to 140ºF operating temperature (tip and system)
• 0 to 140ºF storage temperature
• 80% maximum relative humidity, non-condensing
• 1, 1.5, and 2m probe length options
• 2m probe length includes Li-Ion battery
• Forward viewing optics, 90º FOV, 0.315 to 3.937in (8 to 100mm) DOF
• CMOS image sensor
• Pixel count:
  • 1280×800 (still image)
  • 1024×768 (video)
• Tungsten braiding bending neck
• Manual 4-way articulation steering control, 100º
• IP67 rating (head only)
• CE, FCC, RoHS standards compliance
