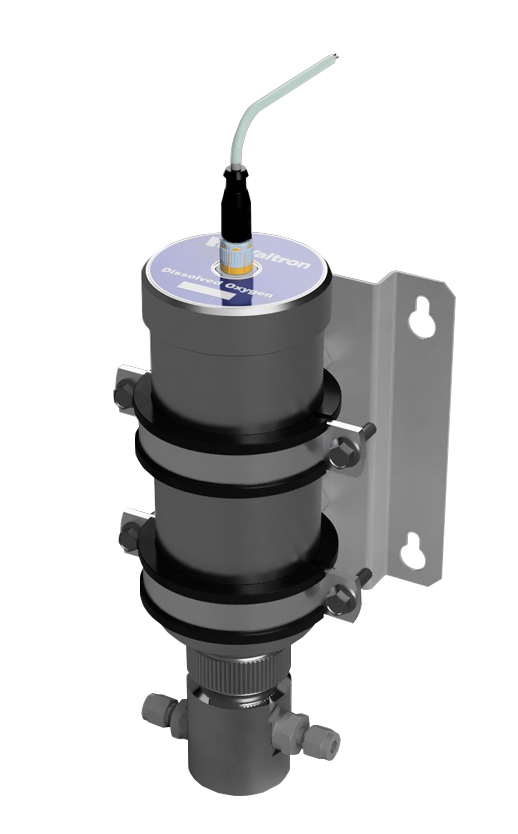

Waltron 9165S LDO Smart Sensor

The 9165S LDO Smart Sensor is connected through a simple 4-20 mA analog output to a panel monitor (not shown) or directly to a DCS. Its compact design can be used in various online analysis applications throughout many industries. The 9165S provides the same high accuracy and excellent long-term stability as the full-sized instrument and can be upgraded with a 9165 transmitter to operate with an entire touchscreen interface.

Features

• Loop-powered 4-20mA
• Digital connection when used with 9165 smart display
• 110 VAC adapter cable available as accessory
• +/- 0.6ppb at 1ppb / 2% of the measured value
• Includes sample flow cell and mounting plate”
• Connects with any 4–20 mA display
• No sensor maintenance (no membrane, no electrolyte)
• No calibration or service for up to a year
• 0-200 ppb, 0-2000 ppb, 0-45 ppm measurement ranges
• 30 second preset response time when loop-powered
• No sample interferences
• Excellent results independent of sample flow rate
• Rugged and compact design
• Save space by eliminating need for transmitters
