VPInstruments VPFlowTerminal Kit

The VPInstruments VPFlowTerminal has 5 sensor inputs: 1 input for your VPFlowScope flow meter and 4 generic analog inputs. It can record up to 8 channels. This makes the collection and analysis of your compressed air data fast and easy.

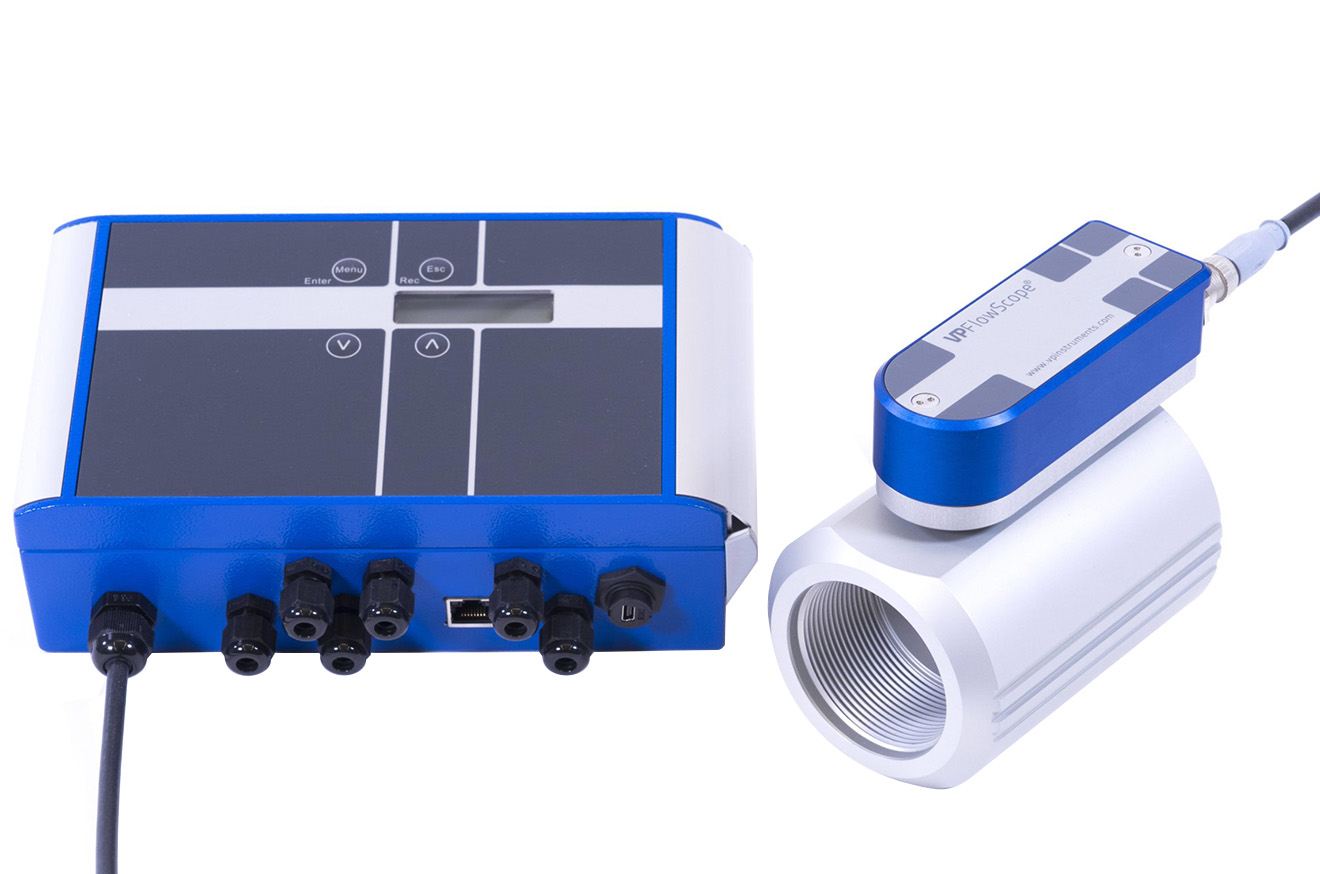

The VPInstruments VPFlowScope In-Line Flow Meter is ideal for point-of-use consumption measurement in compressed air systems. It measures mass flow, temperature, and pressure simultaneously and in both directions. It can be used for both in-line air flow and in-line gas flow measurement.

The VPInstruments VPFlowScope DP Flow Meter measures mass flow, temperature, and pressure simultaneously and is optimized for hot, saturated compressed air measurements.

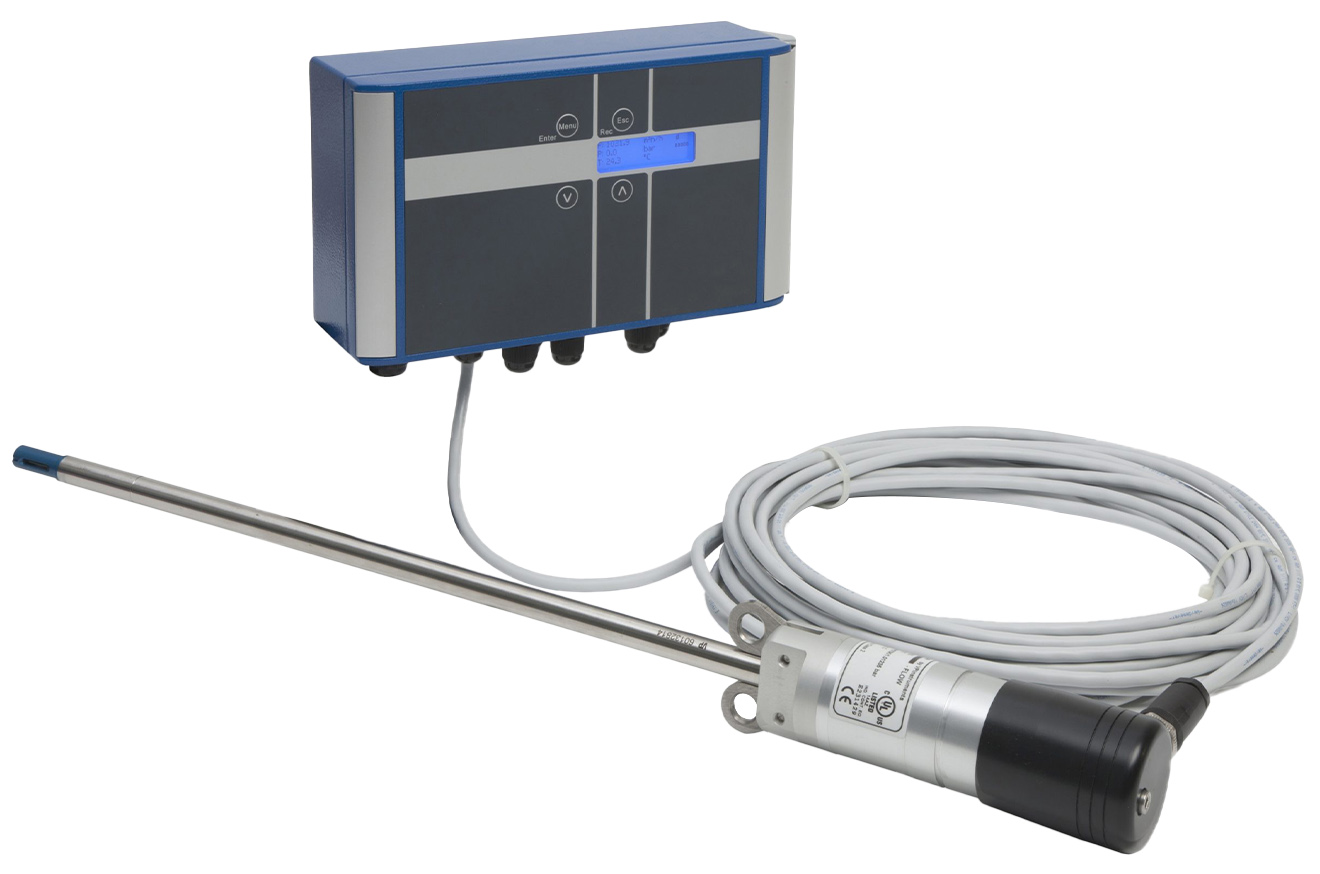

The VPInstruments VPFlowScope Probe Flow Meter measures mass flow, temperature, and pressure simultaneously. This probe can handle various diameters and measures in both directions.

Features

• VPFlowTerminal:
  • Wall mount display
  • Built-in data logger
  • M12, 5-pin connector for VPFlowScope Probe or DP input
    • 8-pin for VPFlowScope In-Line
  • 4 analog input channels
  • 3-line display with real-time information and configuration keys
  • Built-in power supply
  • Easy data retrieval via USB and VPStudio software to .CSV file.
• See VPFlowScope In-Line Flow Meter, VPFlowScope DP Flow Meter, and VPFlowScope Probe Flow Meter for more specs
