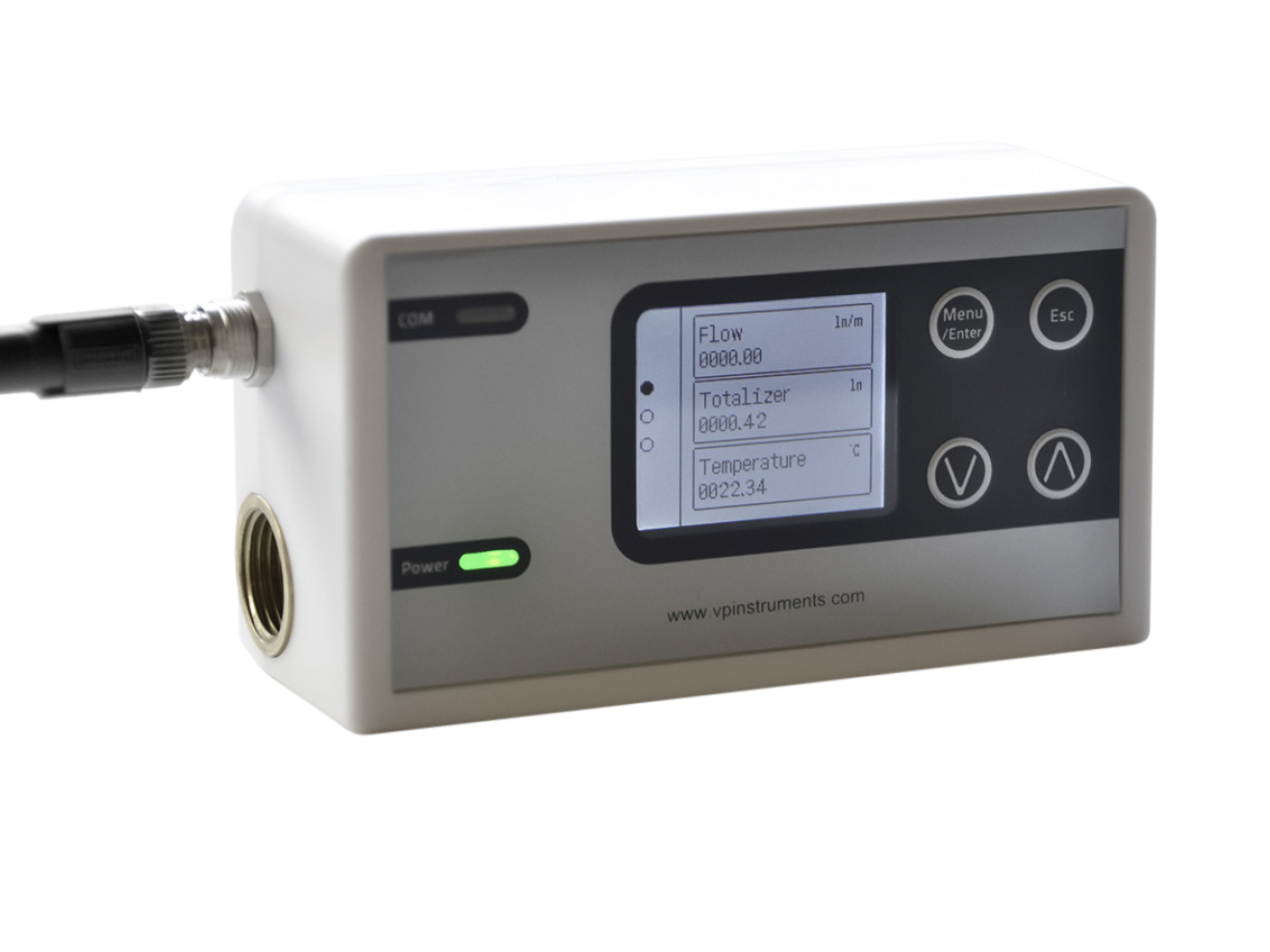

VPInstruments VPFlowScope In-line 3/8in Flow Meter

The VPInstruments VPFlowScope In-line 3/8in Flow Meter is designed for the measurement of low flows of dry, clean compressed air and oxygen at point of use, with a max flow rate up to 1.77scfm. Patented Thermabridge technology allows for simultaneous monitoring of flow, total flow and temperature. The inbuilt display shows the actual and total flow, with Modbus and analog 4 to 20mA outputs which allow the unit to interface with products integrating VPInstruments’ VPVision software, or other monitoring systems. Avoid use in direct sunlight or environments that involve radiant heat, or are highly corrosive.

Applications:
Point of use in compressed air systems
Output of oxygen generators
Consumption measurement
Leakage measurement
Cost allocation and measuring distribution network

Features

• Measurements: flow, total flow, temperature
• Flow range: 0.09 to 1.77scfm (2.15 to 50l/min)
• Gases: oxygen and compressed air
• Gas temperature range: 20 to 32°C (68 to 89.6°F)
• Accuracy: 5% of full scale
• Pressure rating: 0 to 150psig (0 to 10bar)
• Diameter: 0.375in
• LED indicators for power/communication status
• Inbuilt display with real-time data and configuration keys
• Output: RS485 (Modbus RTU) and 4 to 20mA
• Electrical connection: M8 5-pin female connector
• Certifications:
  • IP54 (NEMA 3), EN 60950-1, EN 61326-1, EN 61000-3-2/3
