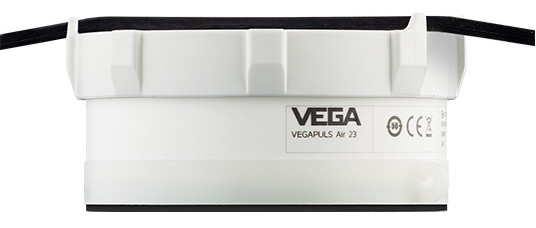

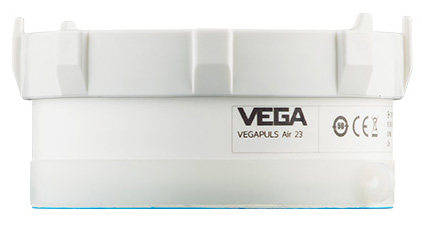

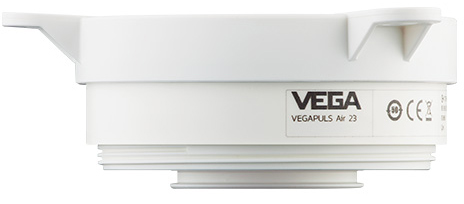

The VEGA VEGAPULS Air 23 autarkic radar sensor is ideal for level measurement in IBC and plastic vessels. The device measures through the closed vessel top and is suitable for almost all liquids and bulk solids. The VEGAPULS Air 23 is quickly installed by simple and secure adhesive, ceiling mounting, or tension belt mounting. As no additional power supply is required, the autarkic sensor offers a particularly economical solution. The sensor housing with high protection rating IP69 enables maintenance-free continuous operation even outdoors or when cleaning the container.
The sensor emits a radar signal through the antenna. The emitted signal is reflected by the medium and received as an echo by the antenna. The resulting level is converted into a respective output signal and wirelessly transmitted. Depending on the availability of the radio networks, the device transmits its measured values wirelessly to an LTE-M (LTE-CAT-M1) or NB-IoT (LTE-CAT-NB1) mobile radio or a plant-side LoRaWAN network.
VEGA VEGAPULS Air 23 Autarkic Radar Sensor Applications
IBC containers for paper chemicals
IBC containers with cleaning agents
IBC-tank (plastic)
Gullies
