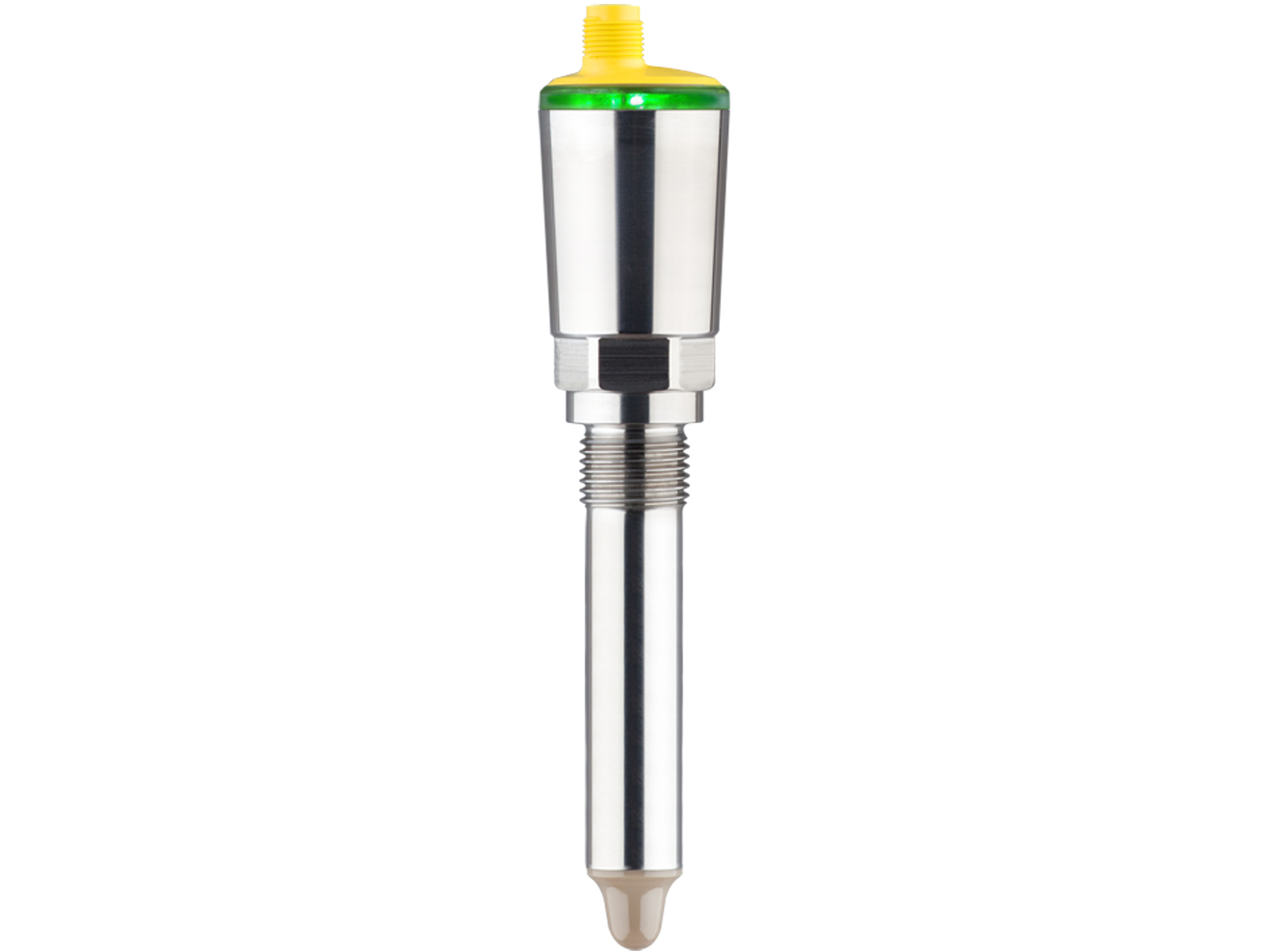

VEGA VEGAPOINT 23 Compact Capacitive Limit Switch

The VEGA VEGAPOINT 23 Compact Capacitive Limit Switch is designed for overfill and dry run protection.

An alternating electric field is generated at the tip of the measuring electrode. If the sensor is covered with medium, the capacitance of the sensor changes. This change is detected by the electronics and converted into a switching command.

Any buildup is ignored to a certain degree and therefore has no influence on the measurement.

The wetted parts of the instrument are made of PEEK and stainless steel 316L. The process seal is made of FKM. The housing is made of stainless steel 316L or Valox and is available in protection classes IP66/IP67 and up to IP69.

Features

• Available up to 39.4in (1m) in length
• Process fitting:
  • Thread G1/2 to G1, M24 x 1.5
  • Thread 1/2 to 1 NPT
  • Clamp 1 to 2in
  • Further hygienic fittings
• Process pressure (standard):
  • -1 to 25bar
  • -100 to 2,500kPa
  • -14.5 to 363psig
• Process pressure (full metal/stainless steel):
  • -1 to 64bar
  • -100 to 6,400kPa
  • -14.5 to 928psig
• -40 to 239°F process temperature
• -40 to 158°F ambient temperature
• 12 to 35VDC operating voltage
• Transistor output signal (PNP/NPN)
