VEGA VEGAMET 341 Built-In Controller

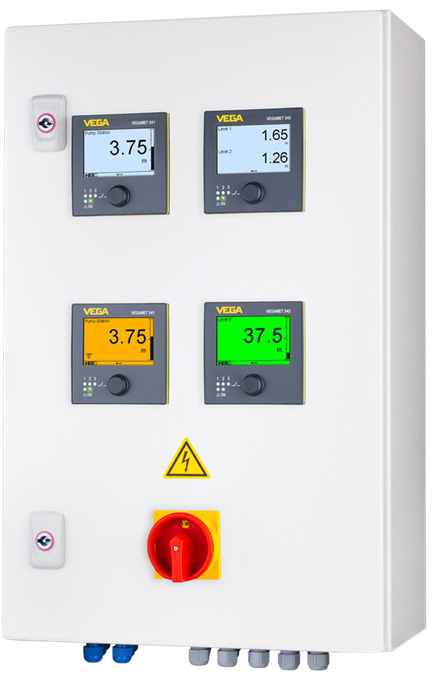

The VEGA VEGAMET 341 built-in controller feeds the connected 4 to 20mA sensor, processes the measured values, and displays them. The installation housing is ideal for mounting in the control panel.

The VEGAMET 341 integrates a large display for data visualization as well as a turn/push button for easy adjustment on site. The VEGAMET 341 allows limit values to be reliably monitored and relays to be switched, for example, for overfill protection according to WHG. The multifunctional instrument enables pump switching, and flow measurement in open flumes or on weirs and summation. The VEGAMET 341 is suitable for many industrial sectors as well as plant manufacturers.

Features

• 4 to 20mA sensor input
• Type of input (selectable):
  • Active input sensor supply through VEGAMET 341
  • Passive input sensor has own voltage supply
• 0/4 to 20mA, 20 to 0/4mA current output
• Relay output:
  • 3 operating relays, one can be configured as fail safe relay
  • Switching voltage: max 250 V AC/60 V DC
  • Switching current: max 1 A AC (cos phi > 0.9), 1 A DC
• ATEX / Europe, IEC / worldwide, UKEX approvals
• Intrinsic safety “i” explosion protection
• IP20 protection (front), IP40 protection (instrument), IEC 60529
• Bluetooth 5.0
• Simple setup and diagnosis of measuring points via smartphone
• Control of measuring point by graphic display, even in the dark
