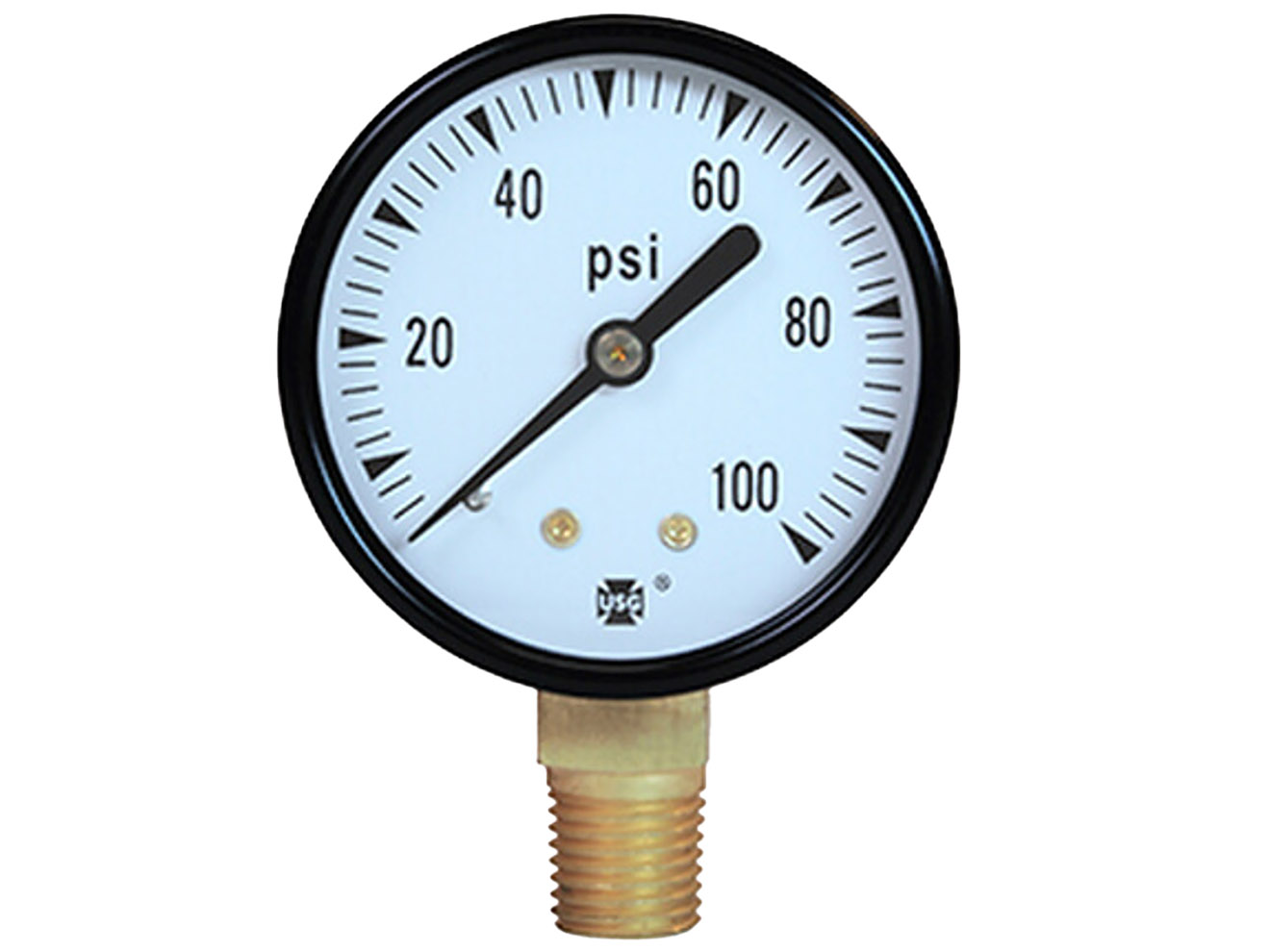

US Gauge Model 500 Low Lead Pressure Gauge

The Model P500 Low Lead Pressure Gauge is a low lead version of the Model 500 Generic Pressure Gauge. These gauges adhere to the federal lead-free plumbing bill enacted by the US Congress “Reduction of Lead in Drinking Water Act” in January 2014.

U.S. Gauge Low Lead Series utility gauges are economical and reliable in a wide variety of applications including potable water pumps, compressors, and other equipment.

Series P-500 utility gauges come in standard psi ranges with accuracy of ±3-2-3%. Gauges are available in 1-1/2″, and 2″ steel cases in center-back and lower mount configurations.

All gauge sizes meet ASME B40.100 Grade B accuracy (±3-2-3%). Pressure ranges are from 0 to 15 psi through 0 to 300 psi. These pressure gauges are available in low mount or center back connections.

Features

• Accuracy: ±(3-2-3% FS)
• Available sizes: 1½” or 2″
• Whetted parts: phosphor bronze, bourdon tube, and brass
• Pressure Ranges: 0-15 through 0-300 psi
• Connection: brass, center-back or lower mount 1/8-27 NPT for 1-1/2″; 1/4-18 NPT for 2″
