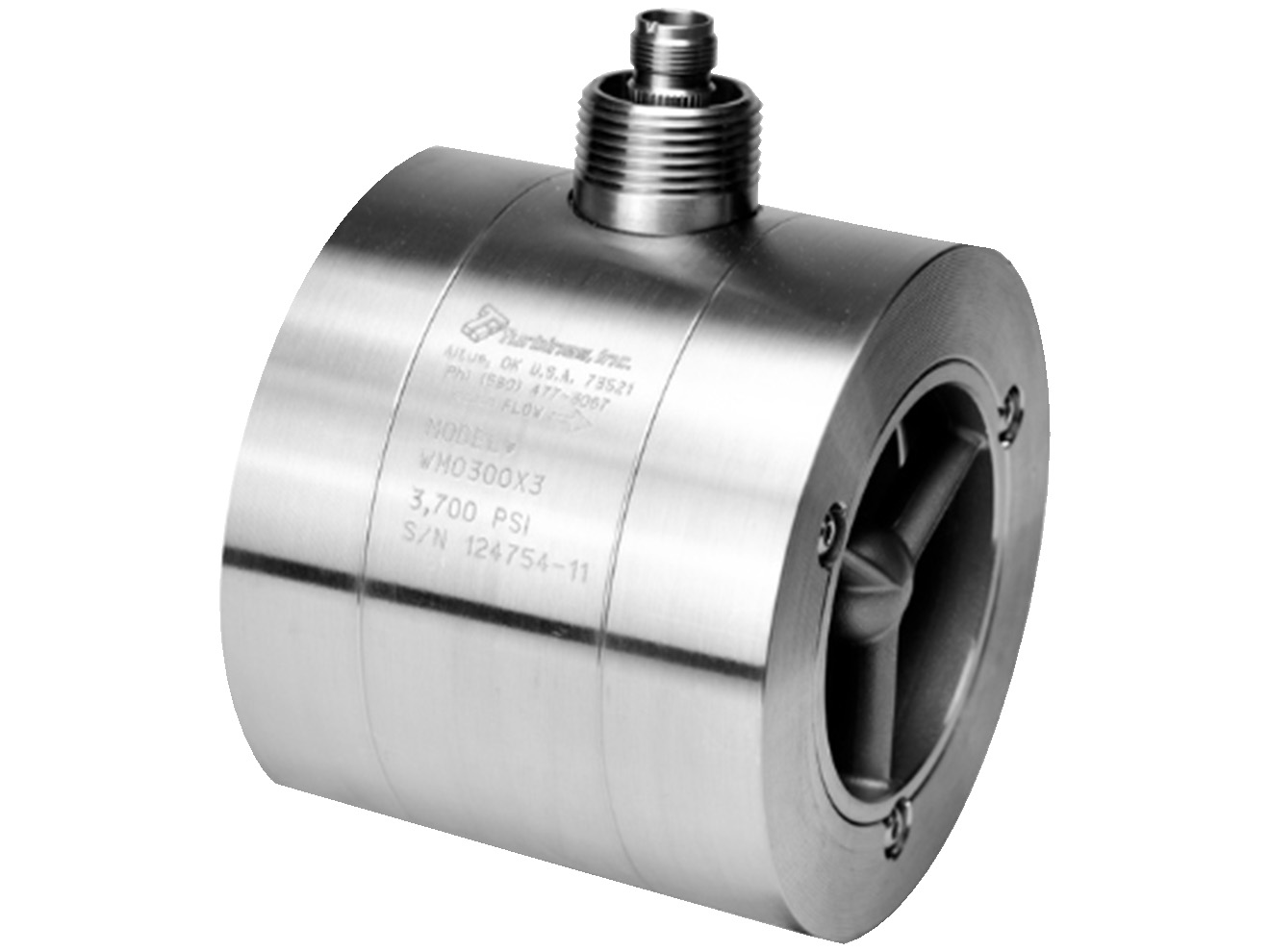

Turbines, Inc. WM Series Liquid Wafer-Style Turbine Flow Meter

The Turbines, Inc. WM Series liquid wafer-style turbine flow meter is designed with durability and accuracy in mind. The WM Series offers ±1.0% linearity and ±0.1% repeatability, ensuring reliable performance. They are capable of operating at pressures up to 6,170psi and temperatures ranging from -100 to 250°F. With an option to extend to 850°F using a special coil available upon request. Crafted with premium materials, including 316 stainless steel for the meter body and rotor supports, as well as tungsten carbide for the rotor shaft and bearings. The WM Series are built for long-term performance and resistance to wear. Calibrated with precision to meet the highest standards, including ISO 9001 certification and NIST traceable calibration.

Turbines, Inc. Flow Meter Applications:
Oil and gas processing
Chemical industries
Water and wastewater management
Power generation

Features

• Linearity: ±1.0% over flow range
• Repeatability: ±0.1% over flow range
• Operating Temperature: -100 to 250°F
  • up to 850°F with special coil (available upon request)
• Maximum Pressure: Up to 6,170psi
• Material(s):
  • Meter Body: 316 Stainless steel
  • Rotor Supports: 316 Stainless steel
  • Meter Rotor: CD4MCu / 416 Stainless steel
  • Rotor Shaft: Tungsten carbide
  • Bearings: Tungsten carbide
• CRN Certified, ISO 9001, NIST traceable calibration
