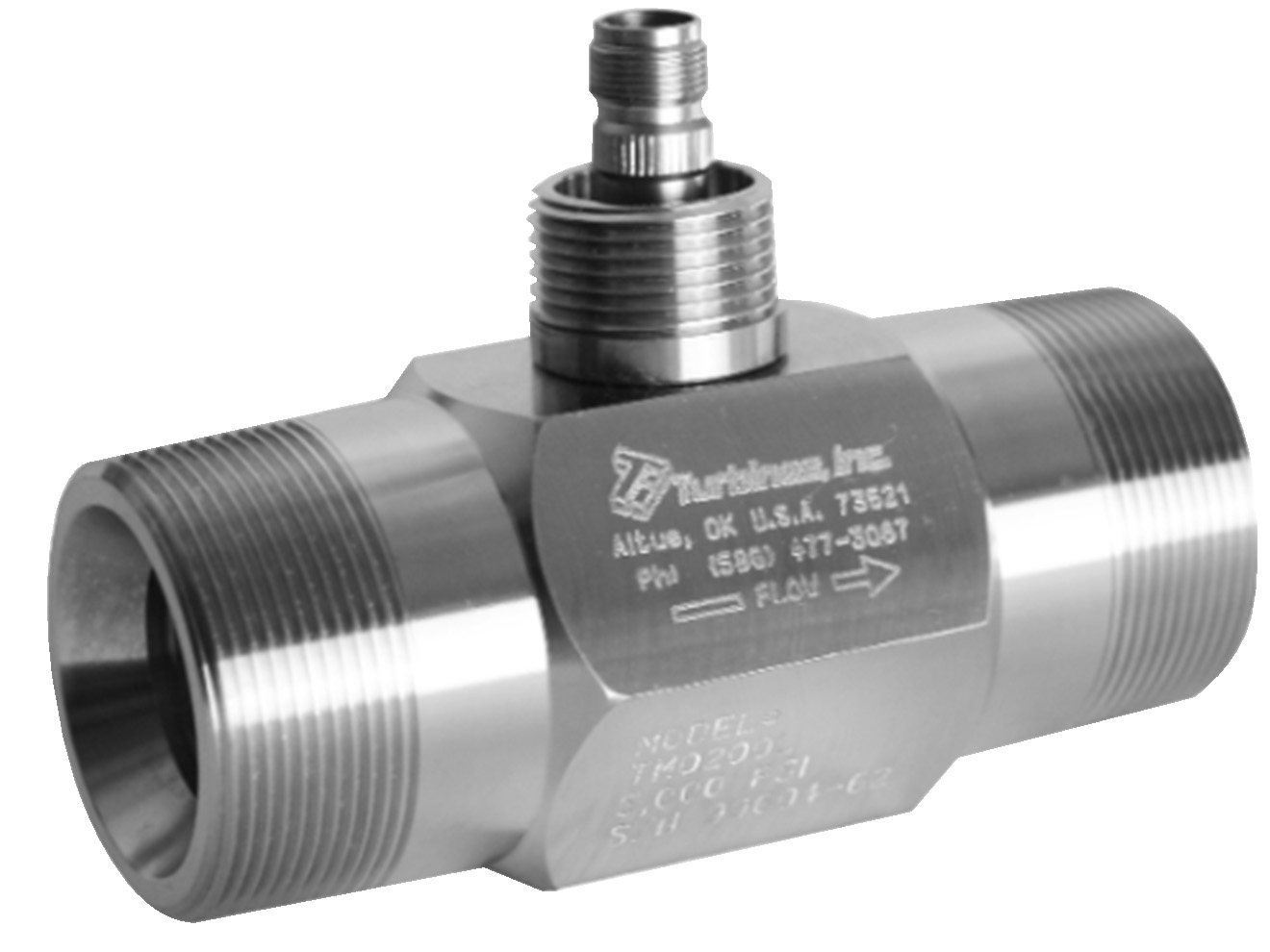

Turbines, Inc. TM Series Liquid Inline Flow Meter

The Turbines, Inc. TM Series liquid inline flow meter is meticulously designed, manufactured, and calibrated using high-quality materials. Including tungsten carbide rotors and stainless steel bodies, to deliver exceptional resistance to wear and corrosion. This flow metering system utilizes advanced technology to ensure precise performance and long-lasting durability. Available in sizes ranging from 0.5 to 10 inches, the TM Series supports flow rates from 1 to 5500gmp with an impressive ±1% linearity. Connection options include NPT, grooved, or flanged, providing versatile solutions for various installation requirements.

Turbines, Inc. Flow Meter Applications:
Flow metering in various industrial processes
Accurate measurement in high-temperature environments
Custom flow metering for specialized systems

Features

• Linearity is +/- 1% over the flow range
• Repeatability is +/- 0.1% over the flow range
• Operating temperature ranges: -100 to 250°F standard
  • Up to 850°F with a special coil (sold separately)
• Retrofit kits are available (available upon request)
• Connections:
  • NPT, grooved, or flanged (consult factory for other options)
• Material(s):
  • Meter Body: 316 Stainless steel
  • Rotor Support: 316 Stainless steel
  • Meter Rotor: CD4MCu/416 Stainless steel
  • Rotor Shaft: Tungsten carbide
  • Sleeve Bearings: Tungsten carbide
• Certifications include CRN, ISO 9001, and NIST traceable calibration
