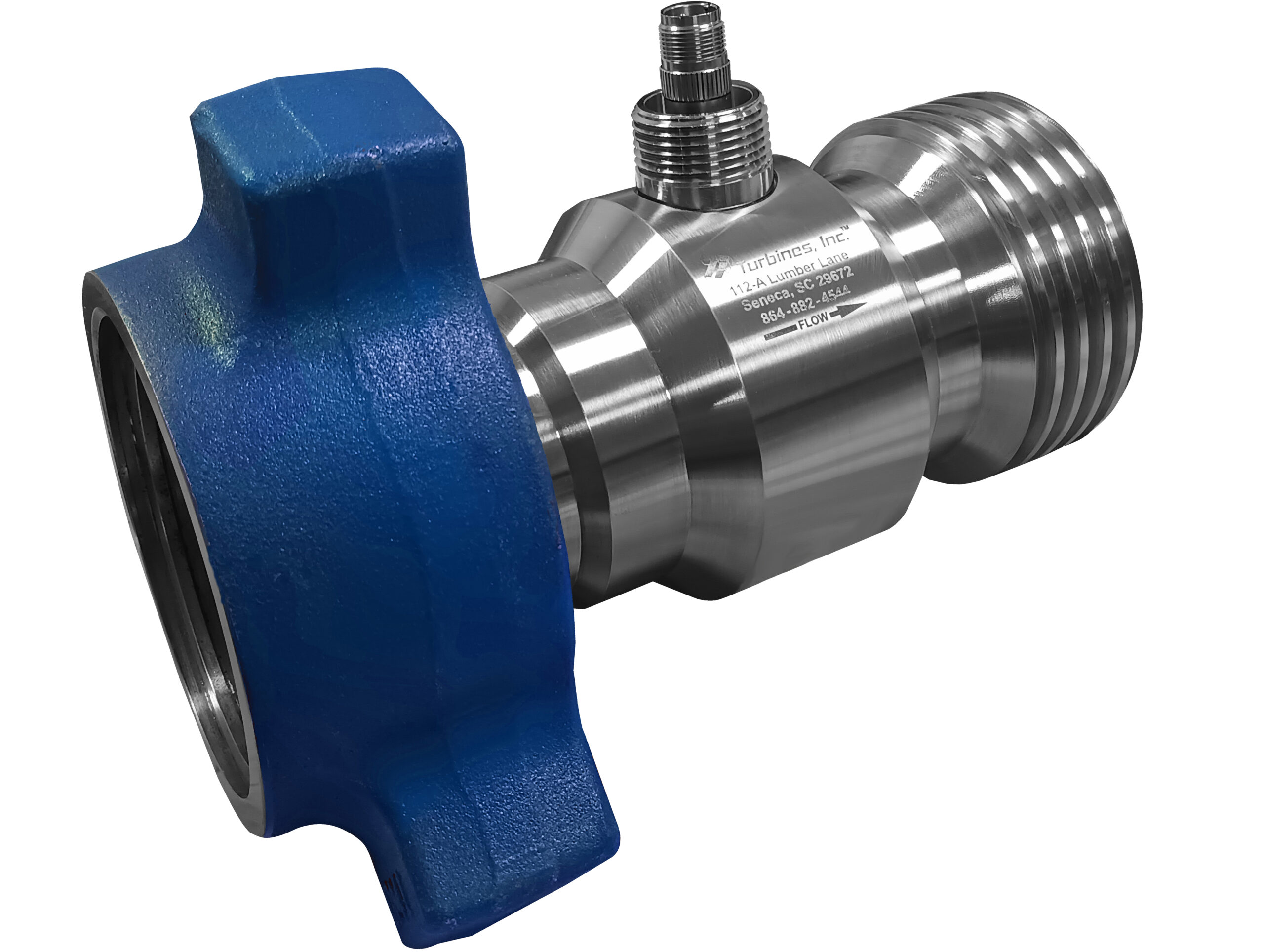

Turbines, Inc. HP Series High Pressure Liquid Turbine Flow Meter

The Turbines, Inc. HP Series high pressure liquid turbine flow meter is designed to deliver ±1% linearity and ±0.10% repeatability over the flow range, with operating temperatures from -100 to 250°F. This series offers flow rate ranges from 15 to 600gpm. Constructed with premium materials, including an A286 stainless steel meter body, CD4MCu rotor, and tungsten carbide rotor shaft and bearings, the HP Series flow meter offers exceptional durability and corrosion resistance. The rotor supports are made from 316 stainless steel, ensuring reliable performance under challenging operating conditions. Connections are available in Thread x WingNut or Thread x Thread configurations for ease of integration into existing systems. All flow meters are CRN certified, ISO 9001 compliant, and calibrated with NIST traceability for assured accuracy and quality.

Turbines, Inc. Flow Meter Applications:
Oil and gas processing
Chemical processing
Water and wastewater management
Power generation
Industrial manufacturing

Features

• Linearity: ±1% over flow range
• Repeatability: ±0.10% over flow range
• Operating Temperature: -100°F to +250°F (Standard),
  • Up to 850°F with a special coil (sold separately)
• Connections: Thread by WingNut and Thread by Thread
• Flow Rate: 15 to 600 GPM
• Material(s):
  • Meter Body: A286 stainless steel
  • Rotor Supports: 316 stainless steel
  • Meter Rotor: CD4MCu
  • Rotor Shaft: Tungsten carbide
  • Sleeve Bearings: Tungsten carbide
• Full line of economical Retrofit Kits available (available upon request)
• CRN Certified, ISO 9001, NIST traceable calibration
