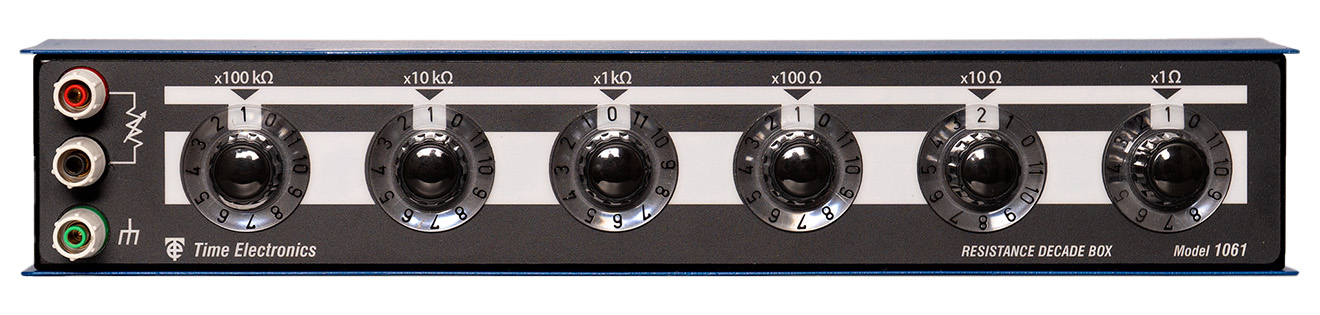

The Time Electronics 1061 resistance decade box is a low-cost, high accuracy and high stability electrical testing device designed to meet the standard required in both educational and industrial applications.
The Time Electronics 1061 resistance decade box is a six decade design with ranges from 1Ω to 1.2MΩ. Metal film resistors with a 0.75 watt power rating are used throughout, providing the advantages of stability and low temperature coefficient. Six large switches with a clear numerical readout make the 1061 resistance box easy to use in educational establishments or in other applications where robustness is a price consideration. The slim line design means it takes up minimum bench space, while the 1% accuracy and wide range makes it suitable for production or select-on-test usage. The case provides complete electrostatic screening.
Resistance is selected by dialing the value required using the rotary switches. This enables precise setting with a clear unambiguous indication. Front panel safety terminals are compatible with 4mm shrouded plugs, as well as standard plugs, bare wires, and spade terminals.
