The SolaHD SPD200K and SPD300K Series Surge Protector offers continuous protection from damaging voltage transients and electrical noise commonly found at the service entrance or distribution panel. The design of the SPD200K and SPD300K allows for installation flexibility and for installation in the most severe exposure locations. The surge protector is capable of handling the high-impulse, potentially damaging transients commonly found at the service entrance or distribution panels.

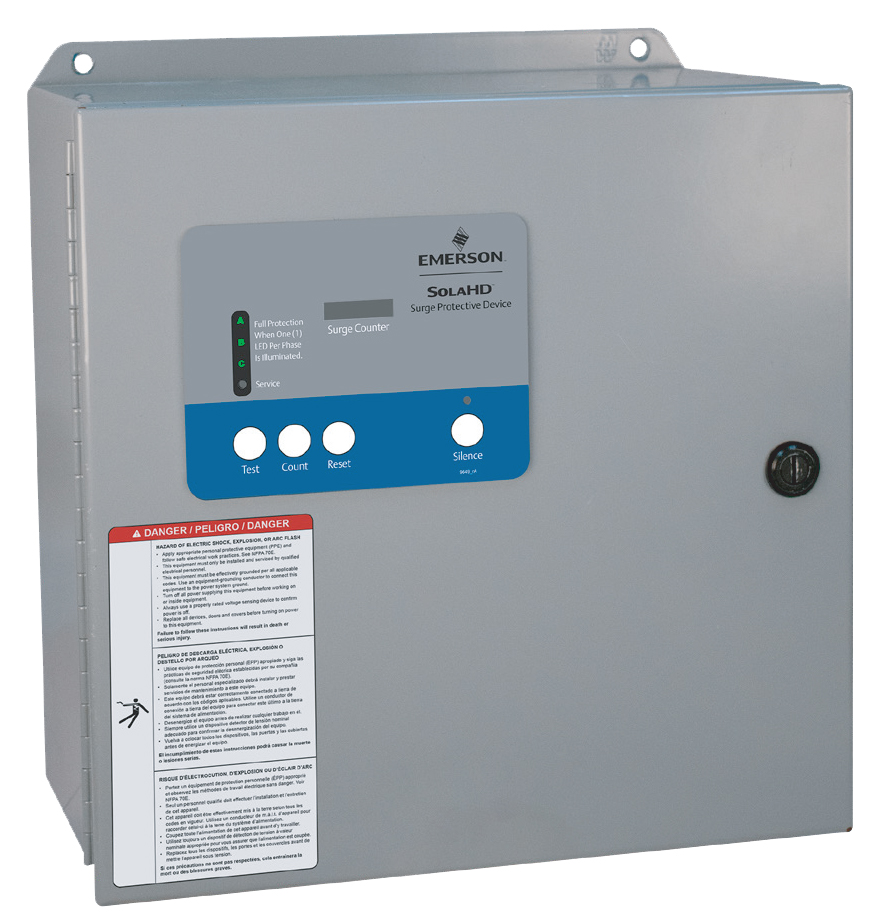

The SPD200K and SPD300K utilizes circuitry to monitor the status of all protection modes, including neutral to ground. Should protection be unavailable in any mode, the Green LED will be extinguished, and the Red LED will be illuminated. In addition, high isolation form C dry contacts provide remote monitoring of protection system failure, under voltage, phase and power loss. The SPD200K and SPD300K protection integrity monitoring indicates failure for both shorted or opened protection components.

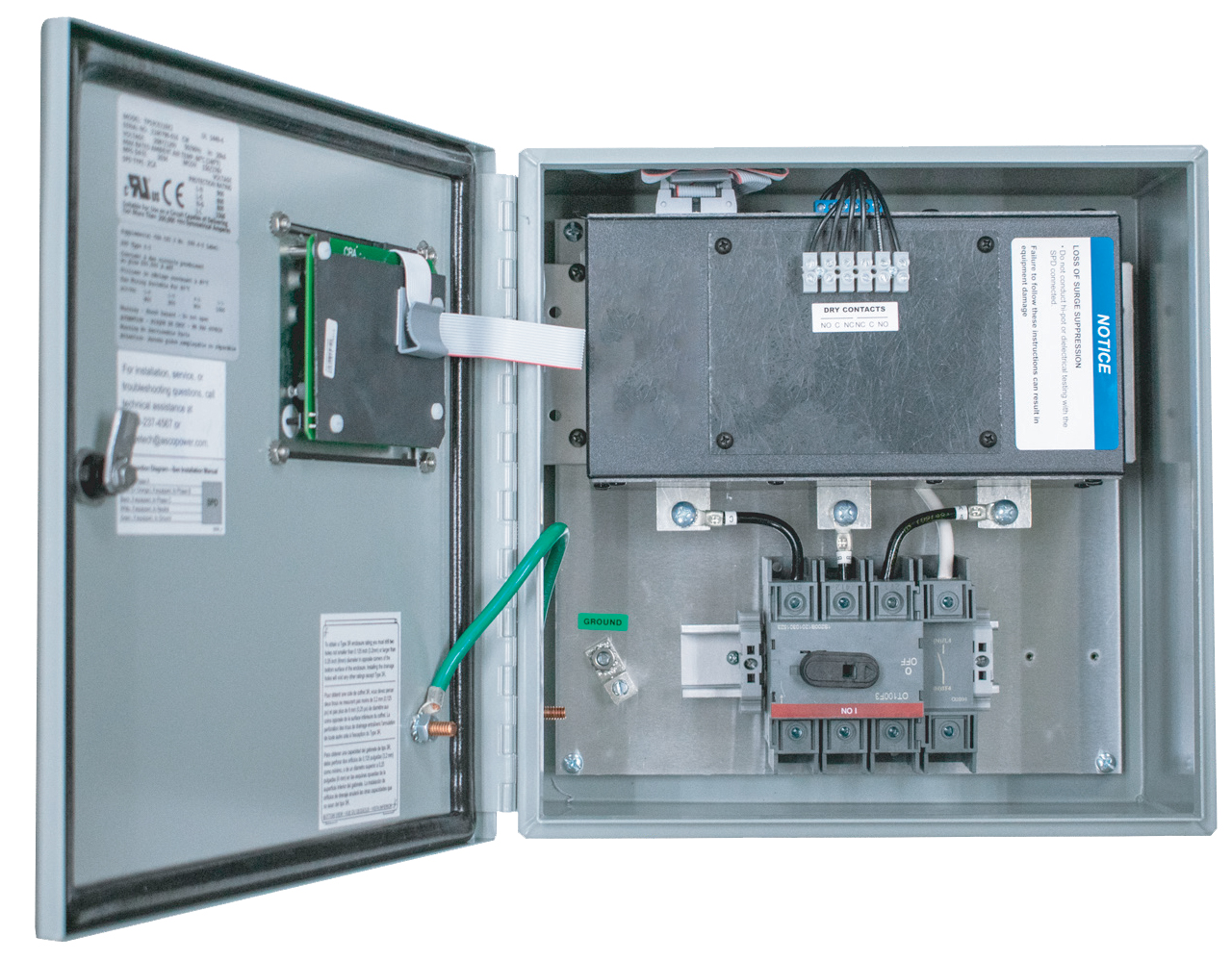

The surge protector is available in hardwire, three phase configuration with an internal rotary disconnect standard. It is designed for years of operation and requires little or no operator intervention after installation. The surge protector can be a facility-wide product family and may be installed from service entrances to distribution panels to branch panels.
Applications
Industrial plants
Commercial buildings
Institutional facilities
Any facility that has an environment with electronics based equipment
