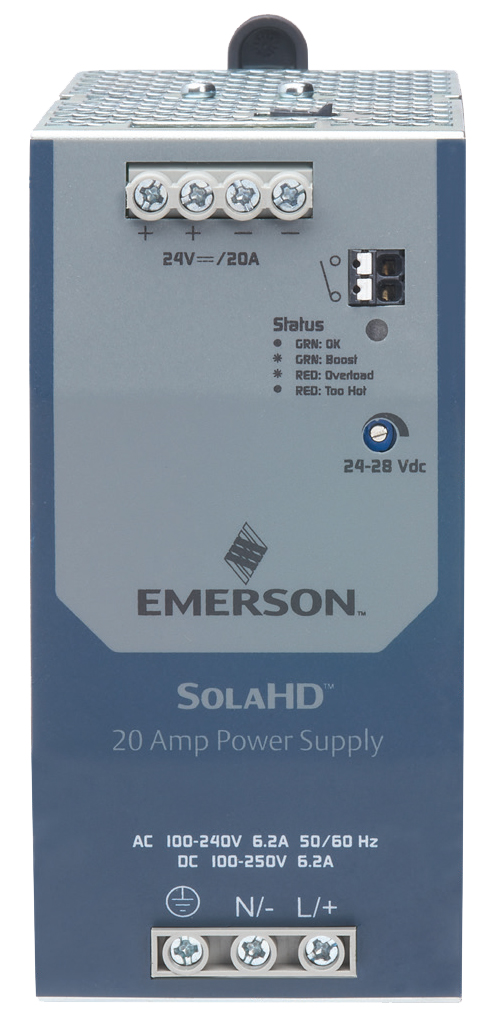

SolaHD SDN-D High Performance DIN Rail Series Power Supply

The SolaHD SDN-D High Performance DIN Rail Series Power Supply is available in 10 and 20 Amp versions with 24VDC output. The power supply offers extensive hazardous location certifications, a wide operating temperature range, and drop-in compatibility with existing power supplies.

The power supply is designed to generate less heat so the enclosure stays cooler, critical in environments that already have high ambient temperatures. Less heat generated means less need for cooling in the panel and the ability to avoid derating.

The SDN-D takes up minimal panel space, allowing enclosures to be smaller and providing space for other system components within the enclosure.

Application
Oil and gas
Automotive
Food and beverage
Petrochemical and chemical

Features

• 150% of nominal inductive load power boost for 4 seconds
• Peak current for circuit interruption power boost up to 600% of nominal for 15msec at >19V
• -40 to 158°F operating temperature
• Greater than 0.98 active power factor correction
• Inductive Load Power Boost additional short term power, to assist in starting loads with high inrush current
• Multi-turn potentiometer simplifies accurate setting of output voltage
• DC OK Relay Terminals provide diagnostic information to a PLC or controller
• Supports redundant power supply operation using optional SDN Redundancy modules
• Accommodates both extreme hot and extreme cold environments
• Extensive international hazardous location certifications, including:
  • Class I Zone 2
  • ATEX
  • IECEx
