The Setra Model CSS / CSC Digital Current Switches feature a solid core or a clamped/split core design. The CSS / CSC also have adjustable switch setpoints, switch Led indications, relay Led indication, over/under current sensing, and snap on power relay.
The CSS models are ideal for new installations and provide the greatest savings opportunity. Ideal for direct drive units, small exhaust fans, and other fi xed loads, these solid state switches have accurate, very low fixed or user adjustable setpoints. which are activated when the desired amperage is reached. The adjustable CSSGA2100NN and CSSGA2100R1 units have LED’s which indicate switch status. (User can also adjust the setpoint for over or under loads.) Excitation is magnetically induced from current carrying conductor (wire or cable), making these units completely self-powered.

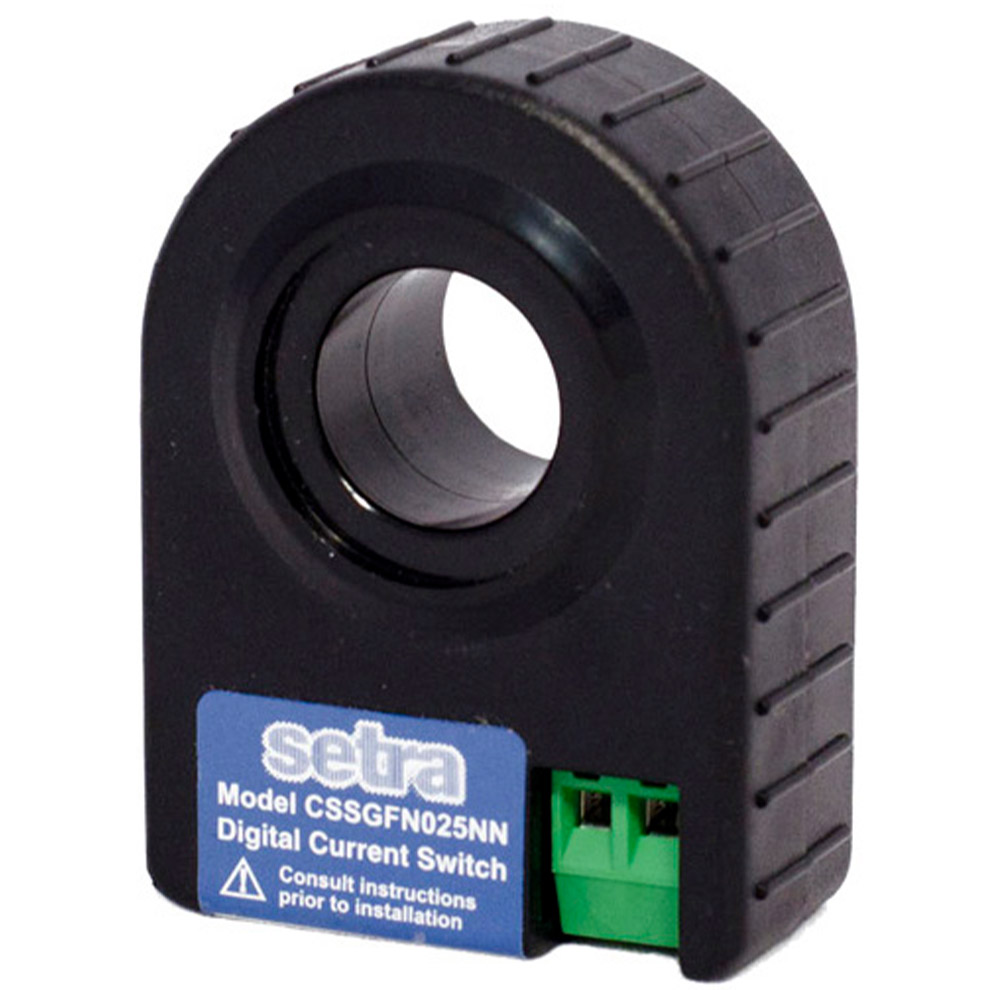

The CSS Series, solid core, current switch’s convenient wide orifi ce allows easy pass through of the conductor, and is bundled with a mounting bracket and hardware, making installation easy. Model CSSGA2100R1 is equipped with a snap-on power relay for remote motor startup.

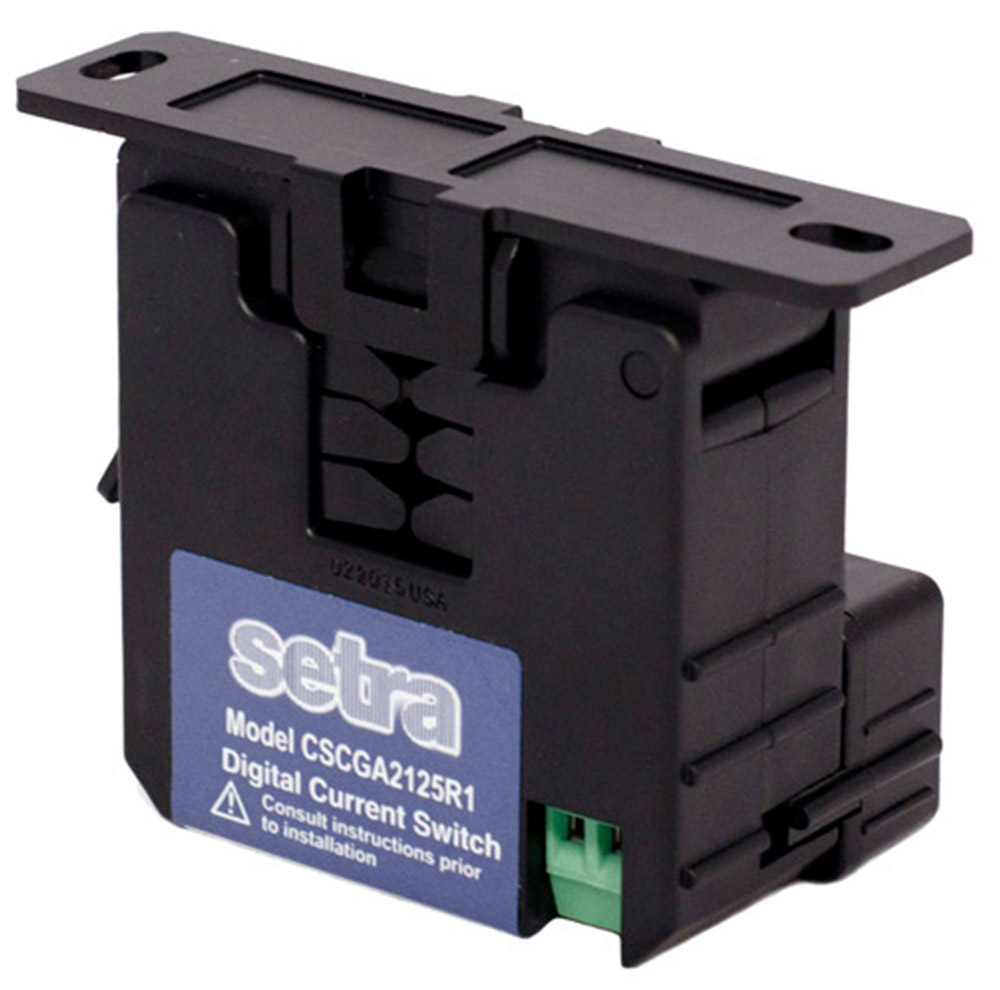

A significant increase or decrease in operating current may result in motor, belt loss, slippage, or mechanical failure, which could jeopardize the user’s process. The split core design of the Model CSC is an ideal solution, as it can easily be clamped onto existing power cables or wires. These units are offered with industry standard 135 Amp or 200 Amp output and very low fixed or adjustable setpoints, which are activated when the desired amperage is reached. Model CSCGA2125NN and CSCGA2125R1 include LEDs for indication of switch status. (Setpoint can be adjusted for over or under loads.)
Applications include:
HVAC
Refrigeration
Pumps
Small industrial motors
Fans
Lighting
