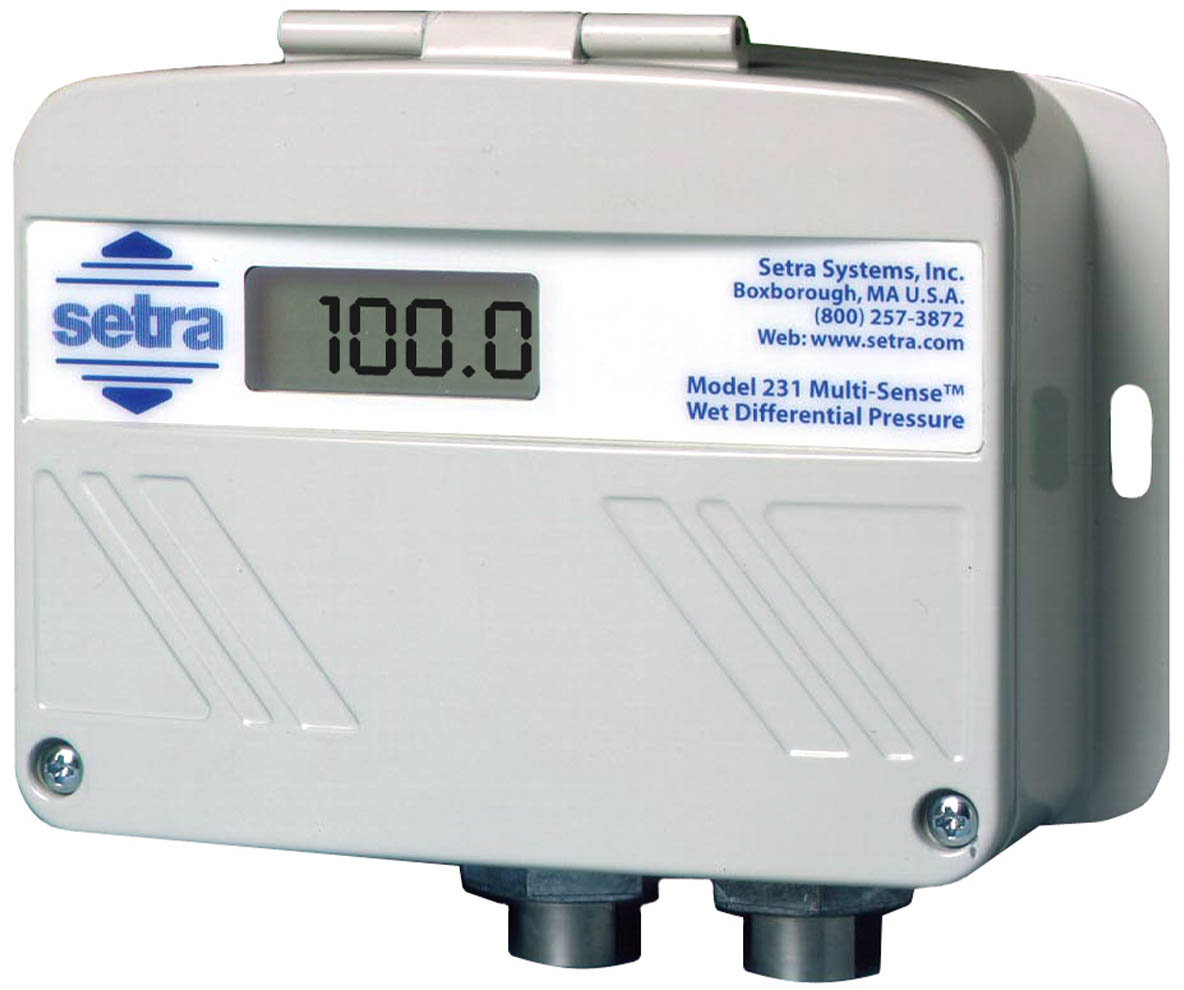

The Setra 231 Pressure Transducer Multi-Sense Wet-to-Wet differential pressure transducer all-inclusive design provides users with field accessible ranging, choice of output and field zeroing.
Choose from three configurable Model 231 pressure transducers: 5 up to 50 psid, 10 up to 100 psid, or 25 up to 250 psid. Each Model 231 has 4 unidirectional and 4 bidirectional switch selectable pressure ranges and can be reconfigured in the field for 0-5 VDC, 1-5 VDC, -0-10 VDC, or 4 to 20 mA output. The Model 231 jumper selectable port swap feature eliminates costly replumbing if the pressure transducer is improperly installed or replaced. An optional LCD display is available for on-site indication of line and differential pressure.
Applications include:
Energy management systems
Process control systems
Flow measurement of various gases or liquids
Liquid level measurement of pressurized vessels
Pressure drop across filters
