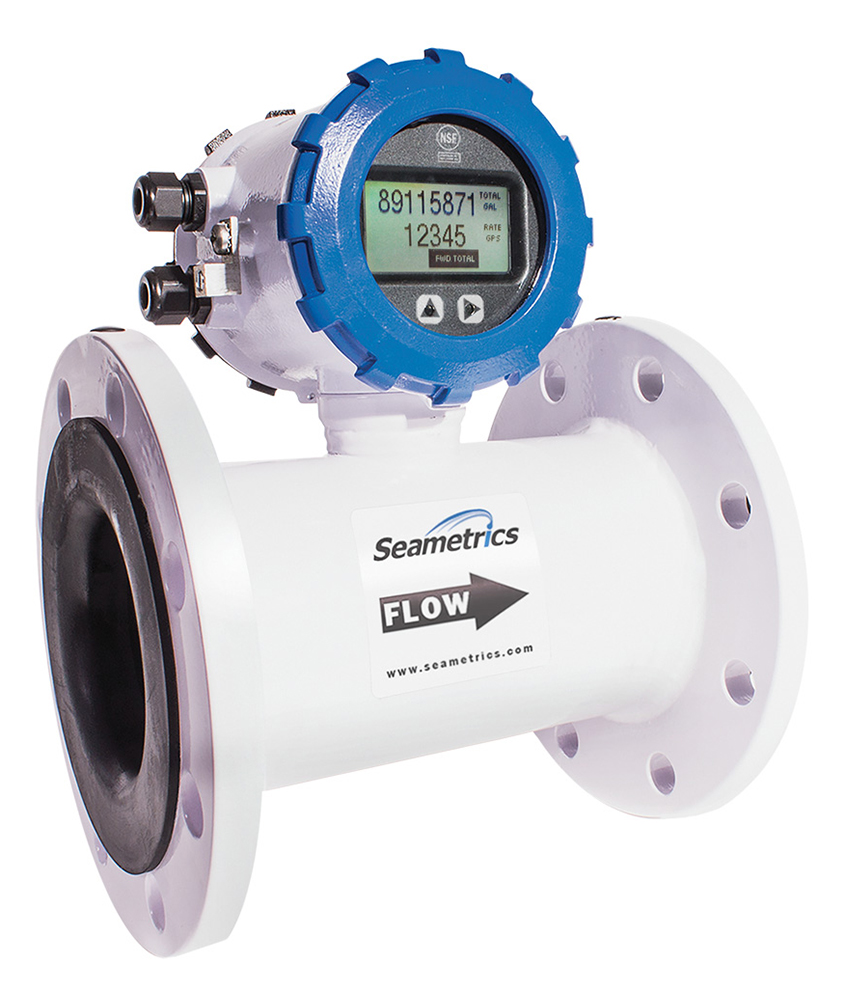

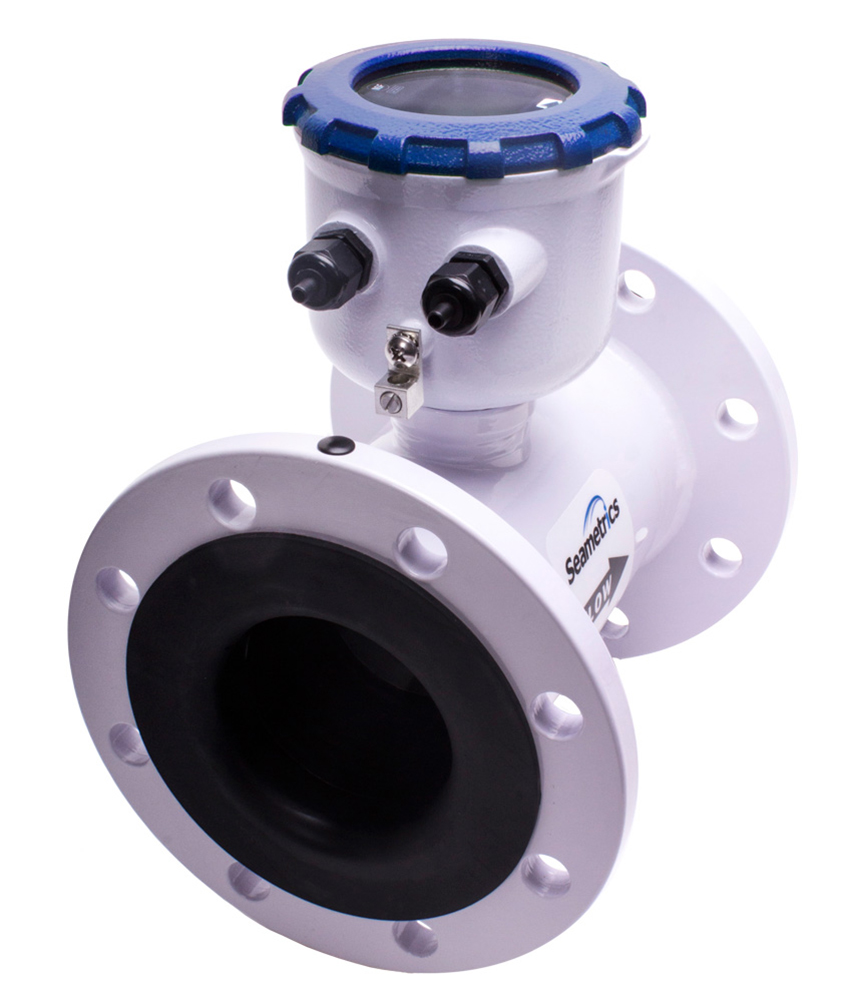

The Seametrics iMAG4700 series is the most economical flanged electromagnetic flowmeter on the market. With electrodes designed to discourage fouling, it is available in 2 to 12 inch pipe sizes for municipal or industrial water, waste and reclaimed water, pump stations, and packaged plant applications. Minimal straight pipe requirements allow the iMAG4700 meters to be used in piping configurations where there is little space between the meter and an elbow.
iMAG4700 flow meters are rated IP68 for applications where the meter may be operated under water to a depth of at least 10 feet (3 meters) continuously. The display can be meter mounted or remote, and both rate and total indication are standard. Rate and total units and pulse scaling can be set via the front panel touch key pad by the user. Bidirectional flow is standard with forward, reverse and net flow.
A power/output cable allows outputs for use with a variety of Seametrics and other displays and controls for remote reading and telemetry applications. Pulse output is standard on all models and 4-20mA passive current loop is standard on the iMAG4700p. In addition, 4-20mA loop, HART protocol, high speed digital, and Modbus protocol outputs are optional on the externally powered units, depending on model.
