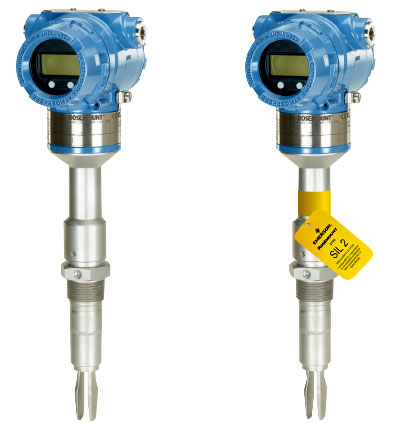

Rosemount 2140 Level Switch

The Rosemount 2140 is a vibrating fork level switch for applications including overfill prevention, high and low level alarms, and pump protection. Utilizing the wired HART® protocol, the 2140 can be easily integrated into automated systems without the need for additional wiring. Switch easily between HART 5 and HART 7 to further meet requirements. Providing reliable level detection of all liquids as well as sediments, the Rosemount 2140 offers greater ease-of-use and flexibility with smart diagnostics that continuously monitor electronic and mechanical device health, and a fully integrated remote proof-testing capability, helping to increase safety and efficiency of both plant and workers. The Rosemount 2140:SIS is certified to IEC 61508 (SIL 2) for safety-critical applications.

Features

• World’s only wired HART vibrating fork level detector
• Pressure rating from VAC to 1450 psig at 122 °F (100 barg at 50 °C)
• Temperature rating from -40 to 302 °F (-94 to 500 °F optional)
• Threaded, flanged, or Tri Clamp process connections
• Extended fork lengths Up to 157.5 in. (4,000 mm)
• Safety Instrumented Systems IEC 61508 certified to SIL 2
• Output: Loop-powered 4-20mA HART(configurable)
• Excellent diagnostics coverage enables true predictive maintenance
• Virtually unaffected by turbulence, foam, vibration, solids content, coating products, and liquid properties
• Adjustable detection output delay prevents false detection in turbulent or splashing applications
