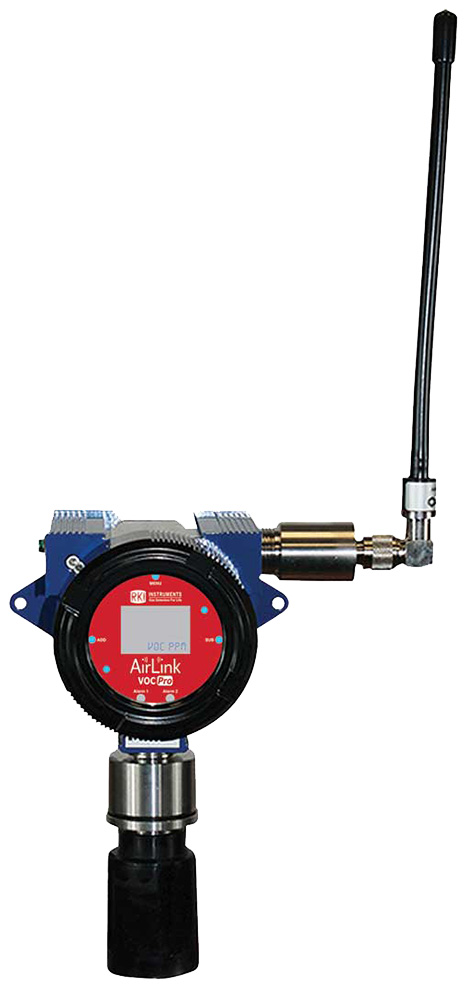

RKI Instruments AirLink VOC Pro PID Wireless Gas Detector

The RKI Instruments AirLink VOC Pro PID Wireless Gas Detector is a versatile transmitter with explosion proof housing. It uses a PID sensor to detect a variety of gases and is wire powered (12 to 35 VDC) with wireless communication to an RKI wireless controller. It also has a 4-20 mA analog and RS-485 Modbus outputs are standard. Magnetic switches allow for non-intrusive calibration while in the field as well as full system settings and diagnostics.

PID sensor options:
10.0 eV lamp
11.7 eV lamp
10.6 eV Lamp, High PPM Range PID
10.6 eV Lamp, Low PPM Range PID
Example Applications:
Petrochemical plants
Refineries
Water & wastewater treatment plants
Pulp & paper mills
Manufacturing facilities
Chemical plants

Features

• -40° to 54°C (-40° to 129°F) operating temperature
• Output Options:
  • 900 MHz or 2.4 GHz radio
  • 4-20mA (3-wire) analog
  • RS-485 modbus (4 wire)
• 3 Push-button interface (ADD, MENU, SUB)
• Graphical LCD with LED backlight
• Two individually configurable alarms
• Two front panel LED indicators (amber and red)
• Hazardous location approvals:
  • Class I, Division 1&2, Groups B,C&D
  • Nema 3,4,4X,7(B,C,D)9(E,F,G) – Enclosure only
• 1-Year warranty
