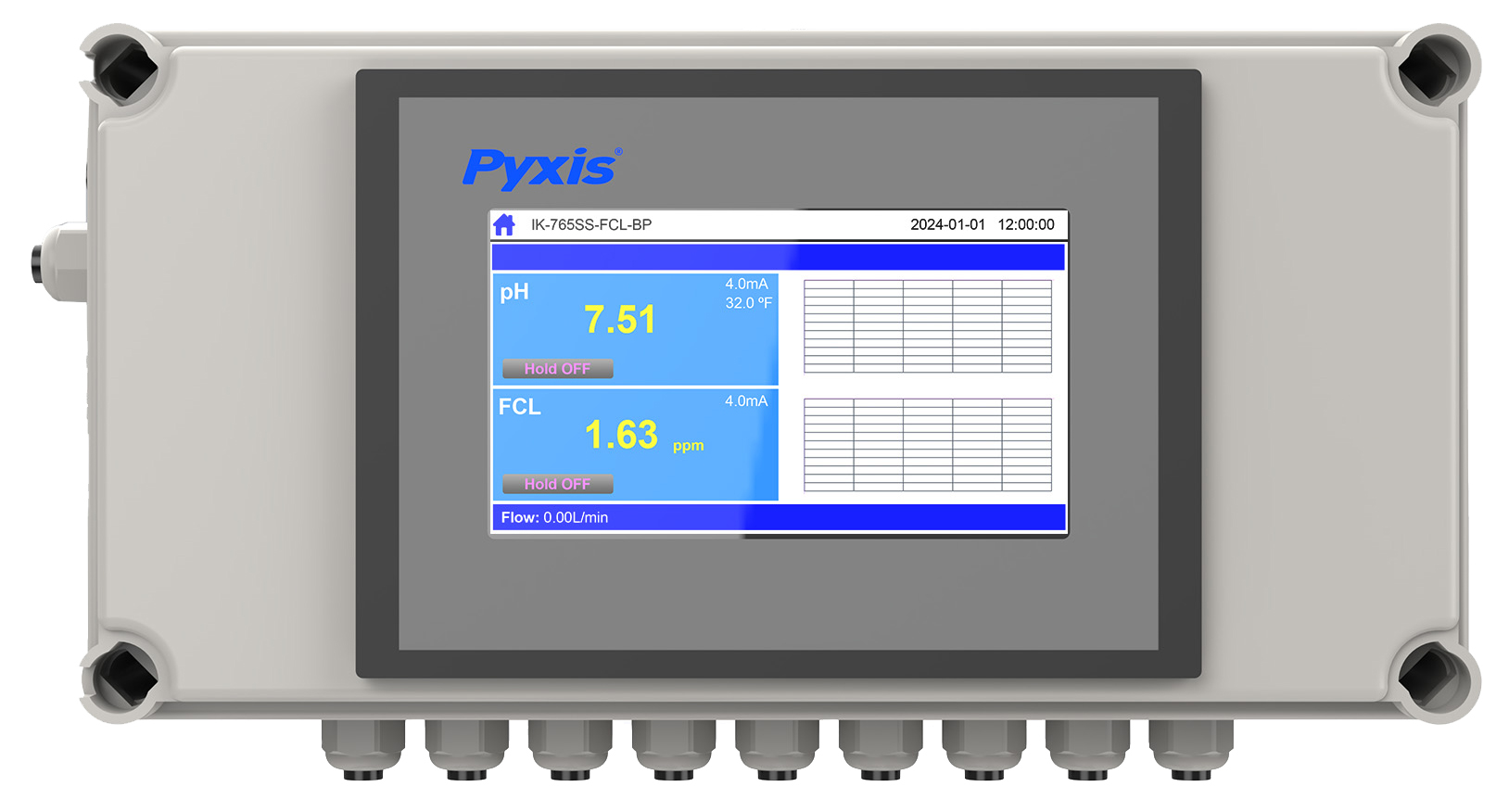

Pyxis UC-100A Preconfigured 7in Color Display and Data Logger

The Pyxis UC-100A Preconfigured 7in Color Display and Data Logger is a microprocessor-based touch screen display and data logging terminal. It can connect up to four Pyxis Lab sensors via RS-485 Modbus. The UC-100A will be preconfigured by Pyxis Lab based on the sensor(s) being utilized. Please note that this may create delays in shipment, but pre-configuration will provide for rapid deployment upon arrival. The UC-100A provides live display and historical data trend charts for each sensor input, as well as a sensor calibration interface while logging data for all inputs via USB download, transmission via Modbus RTU and/or Modbus TCP.

The UC-110A may be installed as a standalone device or directly wired to any receiving controller, PLC, or DCS Network. The UC-100A also comes equipped with two extra 4 to 20mA inputs and outputs, which can be used to log data from non-Pyxis analog devices.

Features

• Power: 100/220VAC, 50/60Hz, 30W
• Display: 7in, 4-wire, pushbutton color micro-display, 800 x 400 resolution
• Output:
  • Two 4-20mA
  • RS-485 Modbus-RTU
  • Modbus TCP
• Input:
  • Two 4-20mA
  • RS-485 Modbus
• Internet: RJ-45 socket, Modbus TCP
• 4gb data storage, up to 1 million data entries or events
• 1x USB host, for data downloading and screen upgrade
• Connects any Pyxis Lab sensor via RS-485 and 4 to 20mA
• Pre-configured before shipping, includes custom manual
