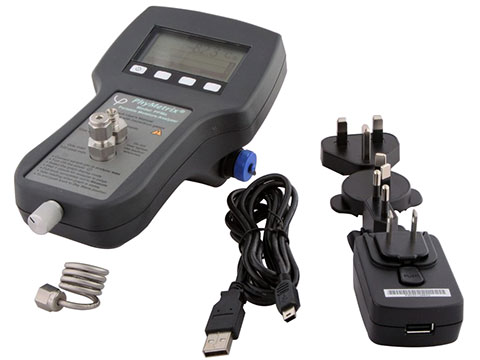

PhyMetrix PPMa Portable Moisture Analyzer

The PhyMetrix PPMa Portable Moisture Analyzer is a multifunctional, multi-purpose, and menu-driven handheld dew point meter & hygrometer. The advanced and user-friendly interface lets you observe continuous status and diagnostic displays with an on-screen histogram and trend graph. The PPMa’s integrated orifice provides pressure regulation and the USB data interface also charges the battery. There is also an optional pressure sensor with automatic dew point correction.

Features

• -166 to 68°F dewpoint (-110 to 20°C)
• ±2°C accuracy
• >1 LPM sample flow
• 0.8°C repeatability
• -40 to 158°F (-40 to 70°C) temp range
• 2 to 150 PSIA ±1%, 316L ss wetted parts, higher pressures optional
• Programmable data logging
• Built-in temperature compensation
• Integral sensor desiccant storage chamber
• Battery backed clock calendar
• Optional 4/20 mA output
• 1/8″ Swagelok® compression fittings
• NIST calibrations
• NEMA 4X
• IP65 enclosure, optionally ATEX approved
