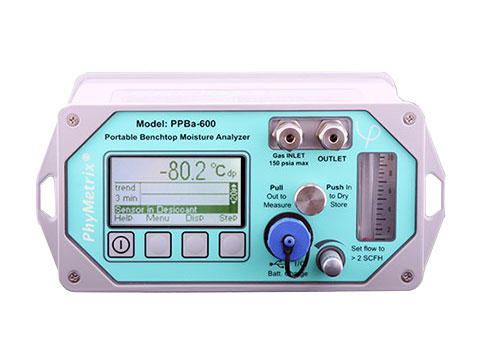

PhyMetrix PPBa Benchtop Dew Point Analyzer

The PhyMetrix PPBa Benchtop Dew Point Analyzer has a continuous status and diagnostic display, with and on-screen histogram and trend graph. Its USB interface also charges the battery. The PPBa has an optional pressure sensor with automatic dew point correction and an optional built-in vacuum pump for sub-atmospheric samples.

Features

• -110°C to +20°C dewpoint Sensor range
• ±3.6˚F (2˚C) accuracy
• 1.5˚F (0.8˚C) repeatability
• 95% of step change in 3 min. response time
• >1 LPM sample flow
• -40 to 158˚F (-40 to 70˚C) temp range
• 316 Stainless Steel and PTFE wetted parts
• 1/8” Swagelok® compression fittings
• Aluminum enclosure
• On-screen histogram/trend graph
• Built-in temperature compensation
• Integral Sensor desiccant storage chamber
• USB data interface, also charges battery
• Battery backed clock calendar
• Programmable data logging
• Continuous status/diagnostics display
• Built-in metering valve and flow meter
