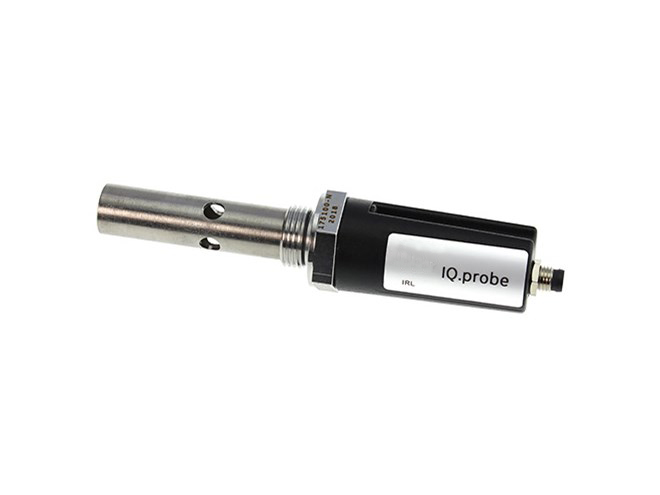

The Panametrics IQ.probe Aluminum Oxide Moisture Probe measures moisture concentration in gases from trace to ambient levels. It is designed to be used in conjunction with the Panametrics dew.IQ analyzer in applications for industries including:
Industrial gas
Furnace gas/heat treating
Power generation
Air dryer
Pharmaceutical
Aerospace
Panametrics aluminum oxide moisture probes have set the standard of performance and value in industrial moisture measurement for more than 40 years.
The IQ.probe is coupled to the Panametrics dew.IQ hygrometers by an interconnecting cable. Ease of use, wide measurement range and rigorous calibration standards make these systems the preferred choice for industrial moisture measurement worldwide.
The real power of the IQ.probe comes from an electronics module that is attached to the moisture sensor probe. The 16 bit resolution allows it to detect parts per billion changes in moisture concentration. The electronics are self-calibrating ensuring long-term stability.
Sensor calibration data is stored in a nonvolatile EEPROM, so data entry to the dew.IQ is automatic.
The aluminum oxide sensor is individually calibrated in one of the world’s most advanced moisture calibration facilities. Developed over several decades, this facility generates precisely known moisture concentrations, traceable to national standards.
Data is gathered and stored by a dedicated computer system. Calibrations are repeated over a period of many months to ensure the stability of each individual moisture probe. Only those probes that meet Panametrics’s demanding specifications for accuracy and stability are shipped to customers.
The IQ.probe is designed to be located at the process, exactly where the measurement is needed. The sensor can withstand process temperature excursions up to 70°C and process pressures from vacuum up to 5000 psig (345 bar). No minimum flow rate is required. The probe can be located up to 3000 feet (0.9 km) from the analyzer, connectedby inexpensive, unshielded, twisted-pair cable (AWG 22). As a result, the probe can be placed in the ideal location, without the cost, delays and installation problems associated with special cabling.
