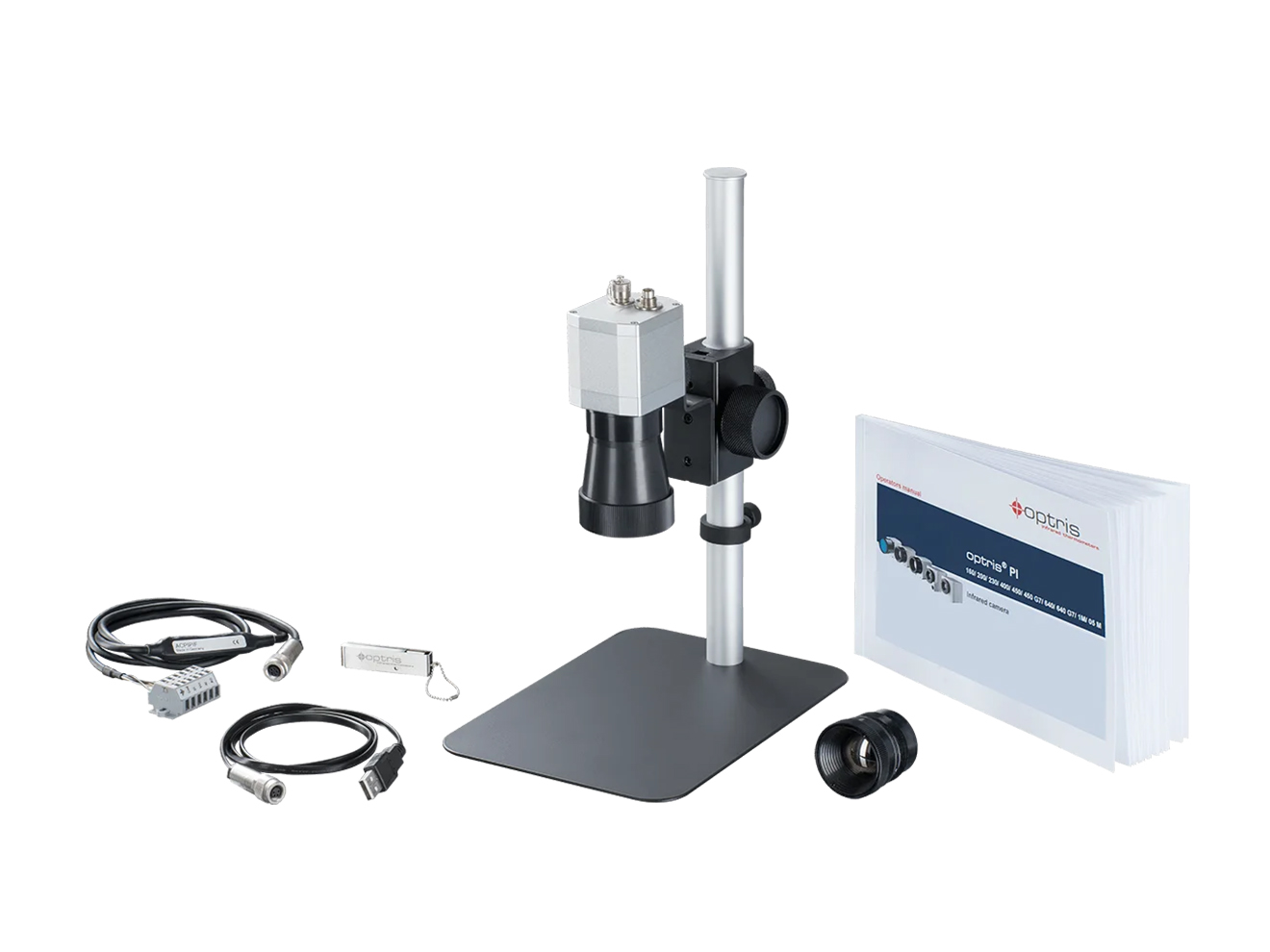

Optris PI 640i Microscope Kit

product id: ecb97129ee08
Categories:
Manufacturer:
InstruHub is a leading supplier and reseller of Optris Fixed Infrared Thermometers, Infrared Thermometers and Miscellaneous in UAE, and we ship to all major cities such as Dubai, Abu-Dhabi, Sharjah

Features

  • Optical resolution:
    • 640 x 480 pixels at 32Hz
    • 640 x 120 pixels at 125Hz
  • Temperature range(s):
    • MO44: –20 to 900°C
    • MO2X: -20 to 500°C
  • Thermal sensitivity (NETD): 80mK
  • Detector: FPA
  • Spectral range: 8 to 14µm
  • Optics (FOV):

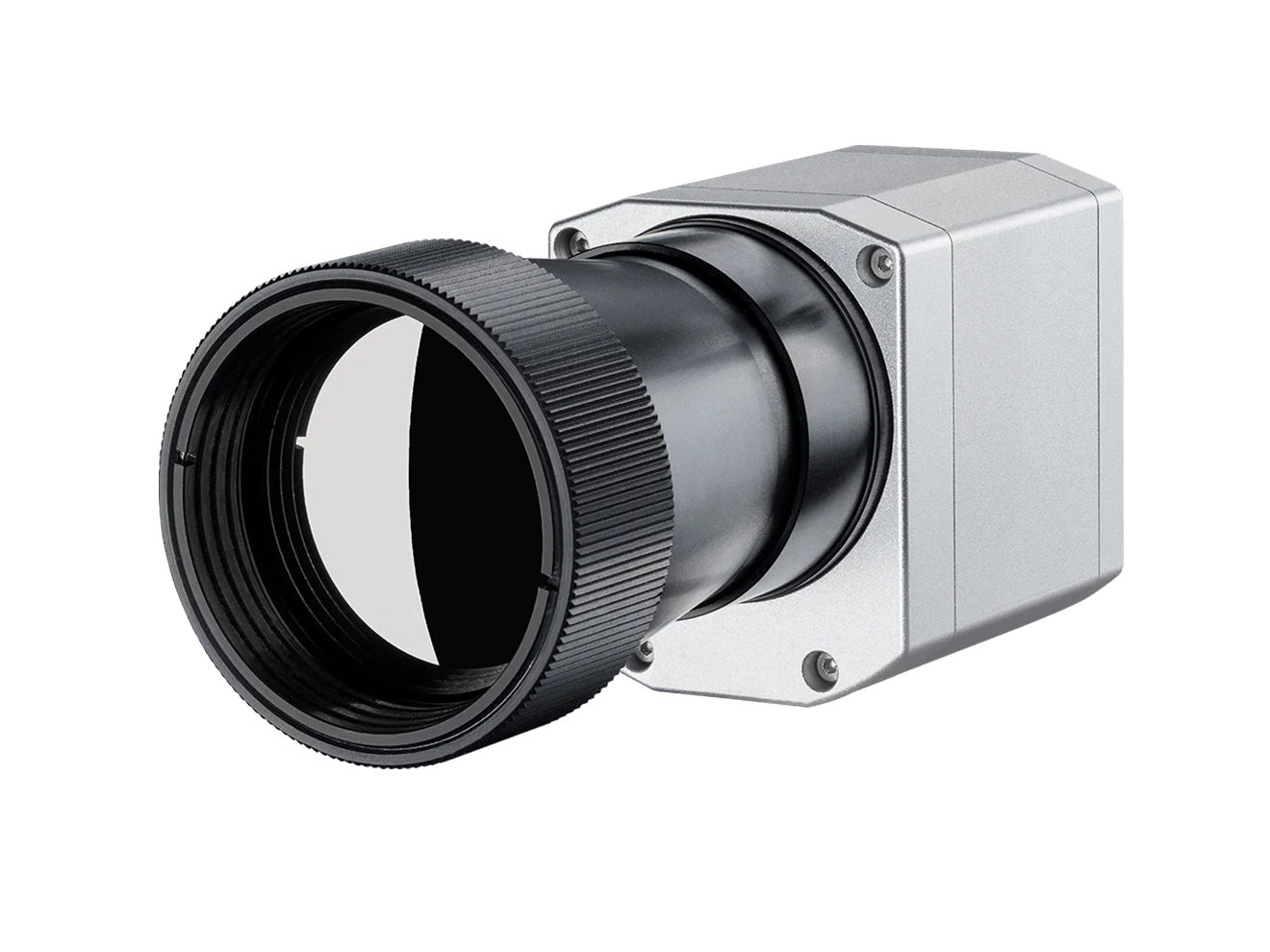

    • MO44: 20.0 (0.78 in) x 14.0 mm (0.55 in) (F=1.1) / f= 44 mm (1.73 in)
    • MO2X: 5.4 (0.21 in) x 4.0 mm (0.16 in) (F=1.3)/ f=60 mm (2.36 in)
  • Motorized focus
  • Accuracy: ±2°C or ±2% (whichever is greater)
  • PC interface: USB 2.0
  • Process interface (PIF):
    • Standard: 0 to 10V input, digital input (max. 24V), 0 to 10V output
    • Industrial (sold separately):
      • 2 x 0 to 10V inputs, digital input (max. 24V)
      • 3 x 0 to 10V output, 3x relay (0 to 30V / 400mA), fail-safe relay
  • Enclosure size:
    • MO44: 46 x 56 x 119 to 126mm (depending on focus position)
    • MO2X: 52 x 59 x 139mm
  • Certifications/approvals: IP67, NEMA 4, CE, UKCA, RoHS, EMC, IEC 60068-2-17/6/64

Why Buy from Instruhub:

  • Supplier of Optris PI 640i Microscope Kit in UAE
  • Best online prices for Optris PI 640i Microscope Kit
  • Wide range of Optris products available in Dubai, Abu-Dhabi, Sharjah
  • Shipping at door with custom and duty included in price quote.

  • Instrument repair and calibration services provided.

  • InstruHub also provides DG Cargo service with as goods with Lithium Ion Batteries.
