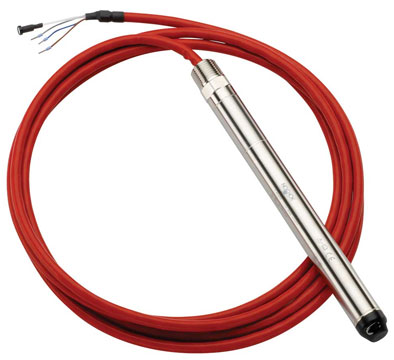

NOSHOK 611 Series Level Transmitters

The NOSHOK 611 series level transmitters measure depth by converting the amount of pressure on a diaphragm into an electrical signal. An optional HART output is available for communicating with a controller. Temperature measurement is also an option via a second output signal. These submersible transmitters are used for the following applications:

Well head measurement
Groundwater monitoring
Level measurement in open bodies of water
Sewage lift and pumping stations
Setting ponds and rainwater basins

Features

• 0.87in (22.1mm) outer diameter
• Up to 100 psi (230.8 ftH2O) pressure ranges
• Optional temperature output
• Low power output signals, can be battery-powered
• 5:1 turndown using optional HART signal
• CE compliant to suppress RFI, EMI and ESD
• IP68 environmental rating
• Pending ATEX, CSA, & IECex certifications
• 3-year warranty
