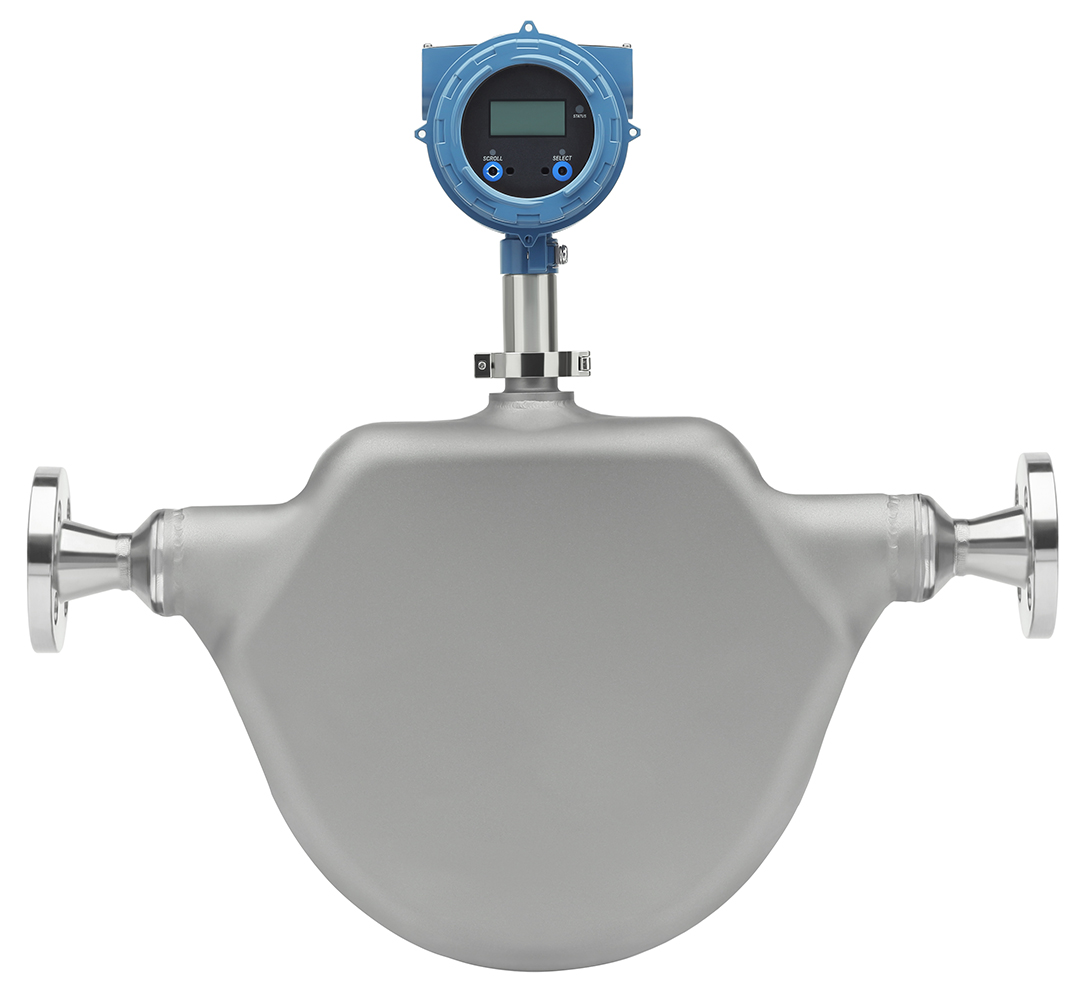

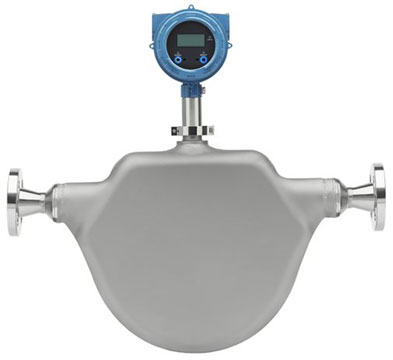

Micro Motion CDM100 Compact Density Meter

The Micro Motion CDM100 compact density meter uses dual curved-tube meter technology to measure density and Coriolis to indicate (velocity/volume) flow rate. It is available in general purpose stainless steel and peak performance nickel alloy manifold versions.

General Purpose Manifold (CDM100M)
316L stainless steel material
±0.2 kg/m3 (±0.0002 g/cm3) liquid accuracy
1450 psi (100 bar) or flange limit max working pressure of sensor
Peak Performance Manifold (CDM100P)
Nickel Alloy C22 material
±0.1 kg/m3 (±0.0001 g/cm3) liquid accuracy
3600 psi (248 bar) or flange limit max working pressure of sensor

Features

• 0 to 3000 kg/m3 (0 to 3 g/cm3) operating density
  • 0 to 1000 kg/m3 (0 to 1 g/cm3) for TPS versions
• Up to ±0.1 kg/m3 (±0.0001 g/cm3) accuracy
• ±0.02 kg/m3 (±0.00002 g/cm3) repeatability
• 300 to 1300 kg/m3 (0.3 to 1.3 g/cm3) calibration range
• -58 to 400°F (-50 to 204°C) operating temp range
• 100Ω RTD integral temperature sensor
• 389 psig (27 bar) max working case pressure
  • Typical burst pressure is 2824 psig (195 bar)
