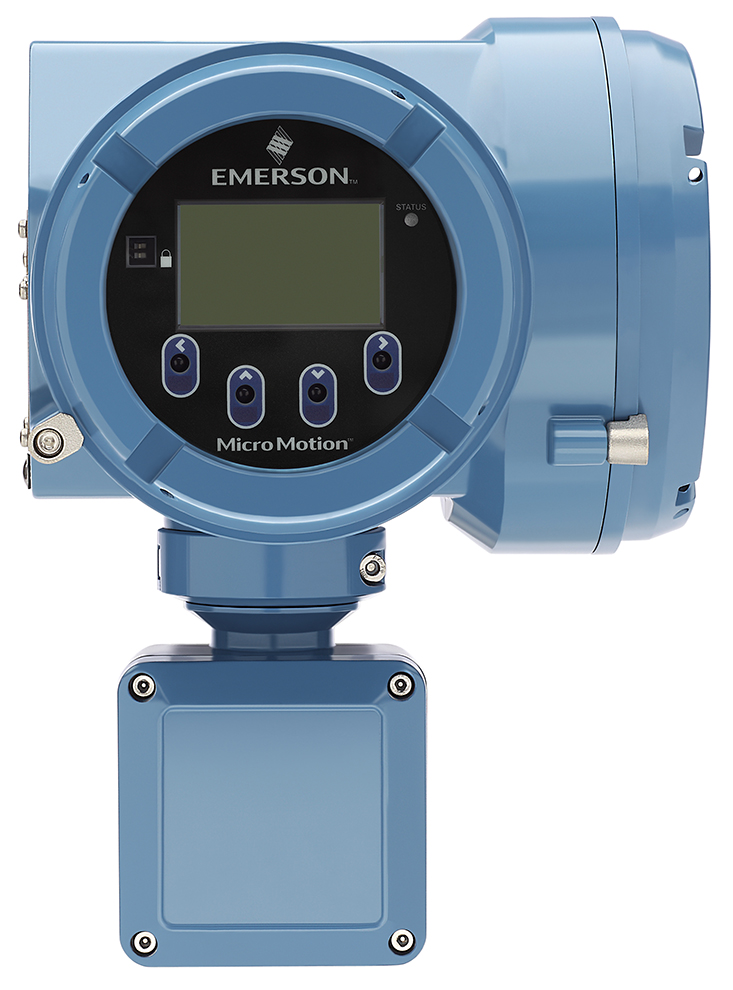

The Micro Motion 5700 flow transmitter features high-accuracy density measurement which reduces or eliminates waste in your process. It’s faster processing speed delivers the best response even in the most challenging applications such as meter proving, filling & dosing and batching.
The embedded historian feature records upsets and process deviations that can be easily accessed to give you valuable insight into your process for better troubleshooting and optimization.
The configurable I/O version has 5 channels you can monitor more process measurements from a single device. The breakdown of the possible I/O channel capabilities are as follows:
Up to 3 mA outputs
Up to 2 Frequency outputs
Up to 3 Discrete outputs
Up to 2 Discrete inputs
mA and Frequency inputs
Modbus/RS-485
The Ethernet version comes with 3 channels, 2 are Ethernet outputs (EtherNet/IP, Modbus TCP, or PROFINET) and 1 is a configurable I/O for mA, frequency, or discrete output.
