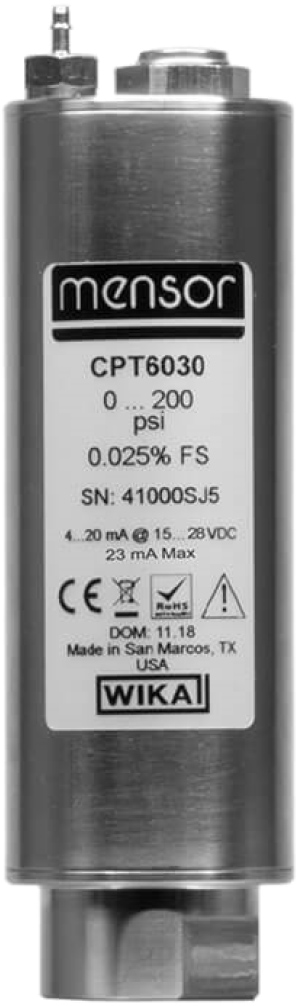

The Mensor CPT6030 Analog Pressure Transducer is a self-contained pressure sensing device that provides high accuracy pressure measurements with a true two wire, 4 to 20 mA output. This transducer incorporates a low hysteresis silicon sensor with electronically compensated pressure linearity over the compensated temperature range. The transducer is characterized over the full pressure and compensated temperature range to achieve 0.025% FS accuracy. The pressure output is updated at a rate of 21 readings per second (47 ms).
Applications for the CPT6030 include:
Pressure calibration
High accuracy pressure monitoring
Pressure sensing in critical applications
Process instrumentation
