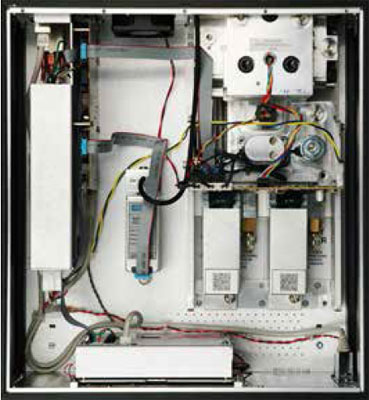

Mensor CPR4000 pressure sensors are installed inside the chassis of the CPC4000 pressure controller and can be replaced using basic hand tools. Each chassis includes platforms for up to two CPR4000 high performance pressure transducers that have on-board compensation and calibration data so that they can be replaced in the CPC4000 without requiring a re-calibration. Make sure that the CPR4000 sensors you select are within the working pressure range of the main unit.
The CPC4000 pressure controller is available in four pressure regulator variations:
Low pressure solenoid valve regulator (-15 to 50psi / 0 to 65psi absolute)
Medium pressure solenoid valve regulator (-15 to 150psi / 0 to 165psi absolute)
High pressure solenoid valve regulator (-15 to 1500psi / 0 to 1515psi absolute)
Extended pressure solenoid valve regulator (-15 to 3045psi / 0 to 3060psi absolute)
