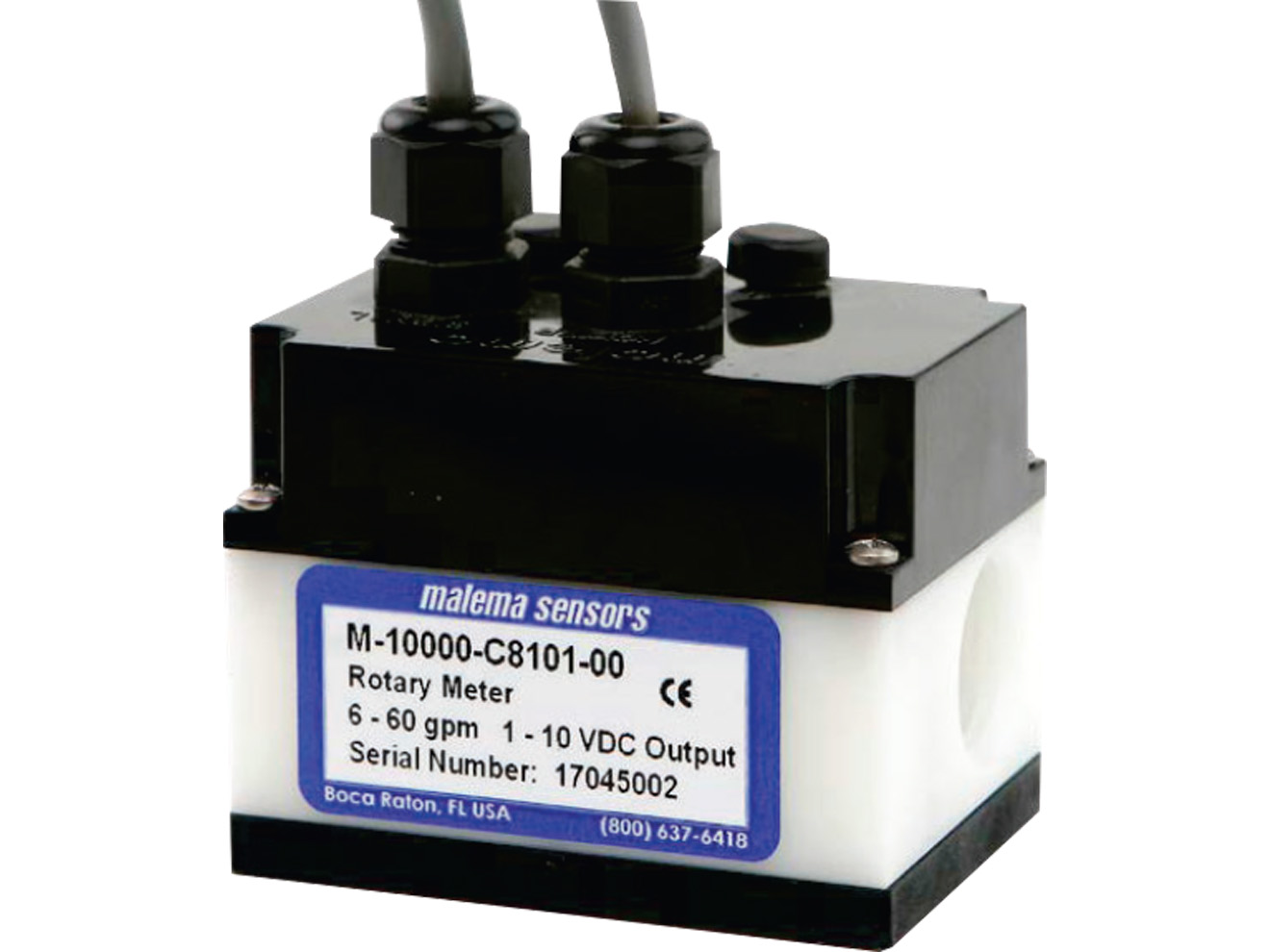

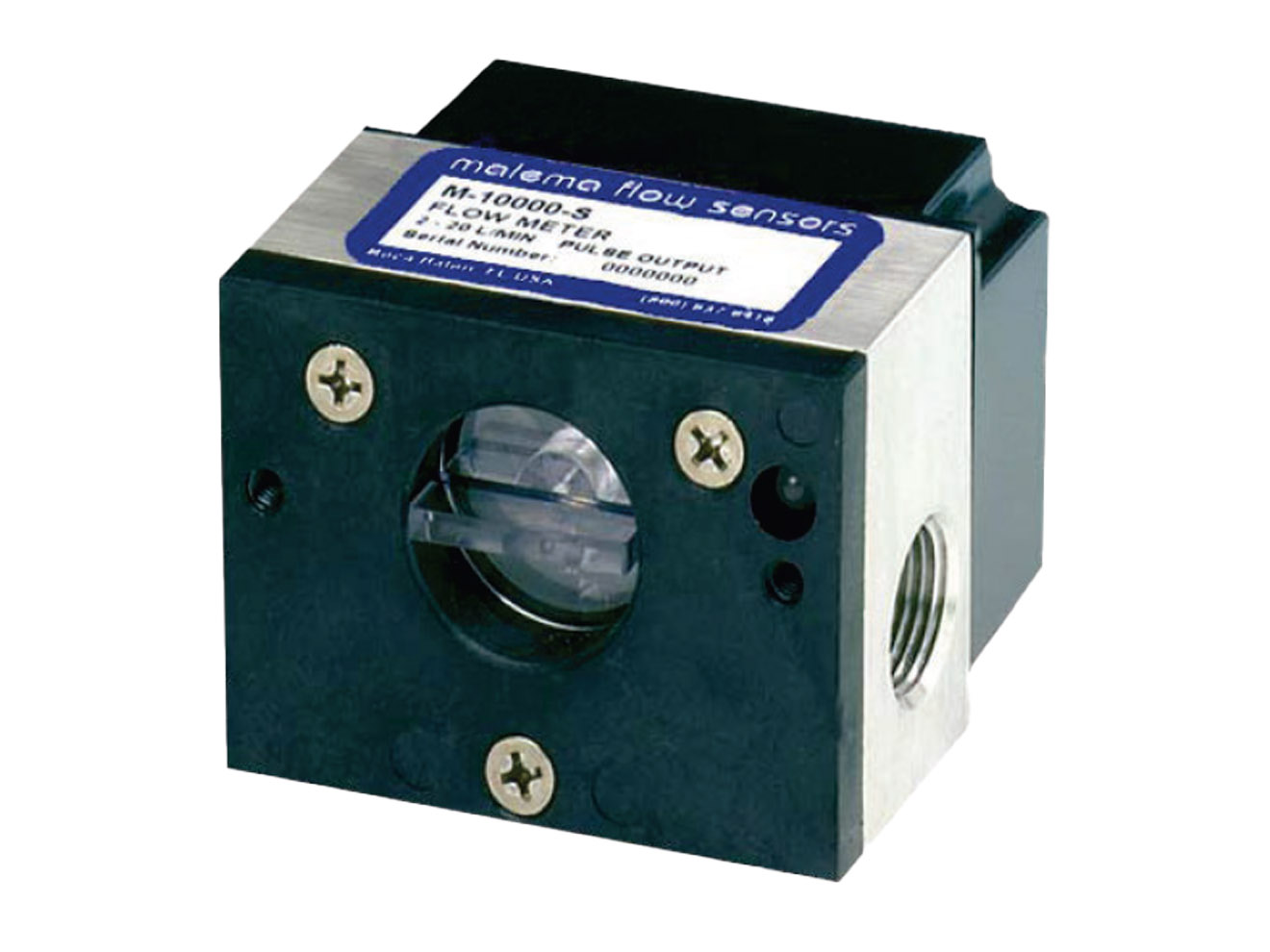

Malema M-10000 Paddle Wheel Flow Meter

The M-10000 Paddle Wheel Flow Meter measures flow electronically in a wide range of industries. Enhancements to tangential turbine flow meter systems are producing a flow sensing device that is smaller, easier to install, and more accurate than ever before. The M-10000 fosters signal conditioning.

The rotational velocity of the rotary wheel caries linearly with the average velocity of the fluid flowing through the flow meter. Producing a square wave pulse from magnets embedded in the vanes of the rotor wheel. Depending on the output version of the M-10000, the pulse signal is relayed directly, converted to a 0-10 VDC (voltage) output or a 4-20 mA (current) output. The voltage and current models are span adjustable over the flow range of the unit.

Applications
Cooling systems
Laser equipment
Wet process systems
CVD, CMP, and lithography tools
Corrosive chemical distribution

Features

• Wide flow rangeability
• Visual Indication
• 4-20 mA, 0-10 VDC, or pulse output
• Built in adjustable flow switch
• Small footprint
• Set point accuracy: ±5%
• Repeatability: ±0.5
• Flow ranges:
  • 0.1-225 l/min
  • 0.026-60 GPM
• Set point range for air is referenced at 14.7 psia and 70° F
• Set point range for water is referenced at 70° F
