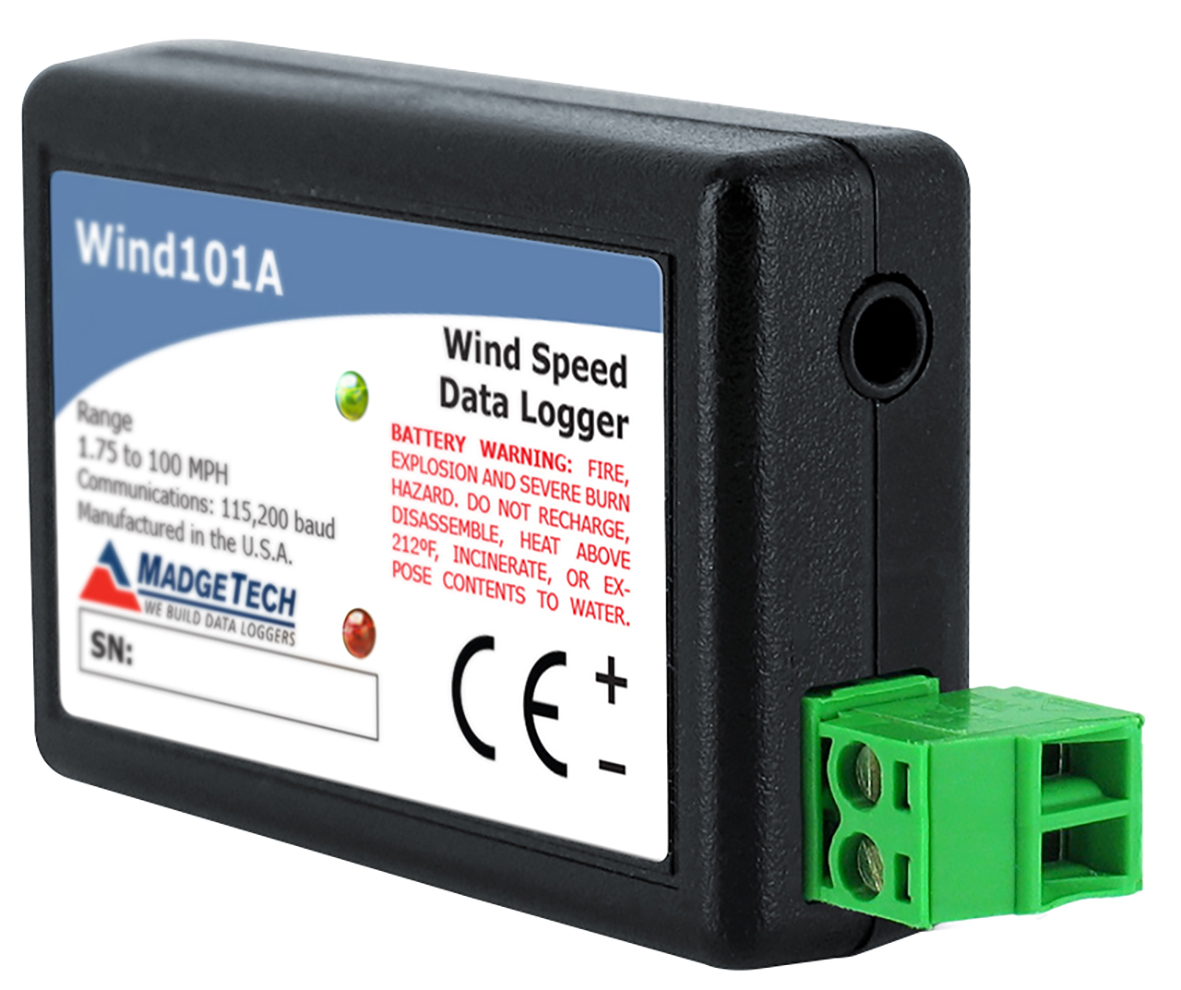

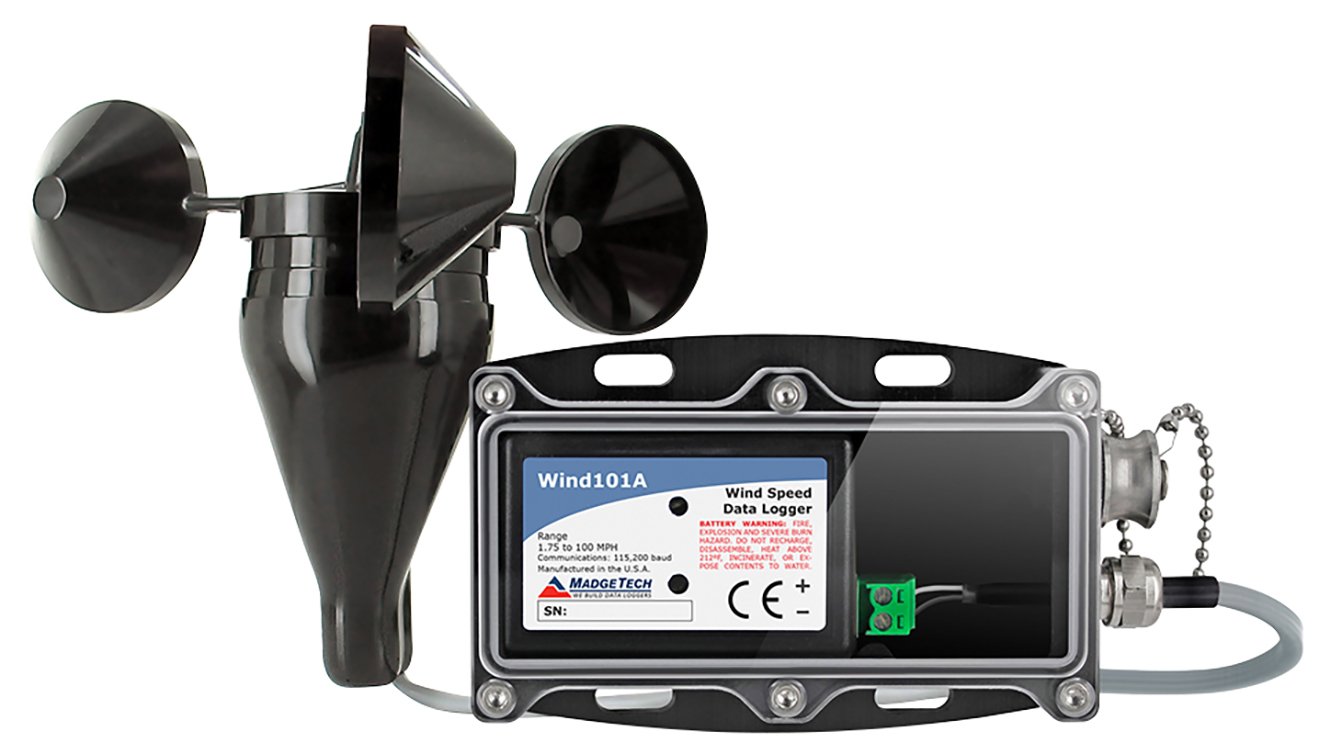

MadgeTech Wind101A Wind Speed Data Logger System

The MadgeTech Wind101A wind speed data logger system is a complete system to accurately measure and record wind speed. This low cost wind speed recording system comes complete with a data logger, weatherproof enclosure, a three-cup anemometer and all the necessary cabling to quickly get up-and-running. The logger can record up to 500,000 readings and the storage medium is non-volatile, solid state memory, providing maximum data security even if the battery becomes discharged.

The device can be started and stopped directly from a computer using our user-friendly software.

Applications for the MadgeTech Wind101A:
Alternative Energy Studies
Meteorology/Climatology
Wind Turbine Location Assessments

Features

• 0 to 100 MPH (0 to 160 KPH) range
• 0.085 MPH resolution at a 10 second sampling rate
• ±2.5% calibrated accuracy over 10 to 100 MPH (16 to 160 KPH)
• 10 year battery life
• 1 second reading rate
• Push button start/stop function
• Ultra high speed download
• 500,000 reading storage capacity
• Field upgradeable
• 25 ft standard anemometer cable
