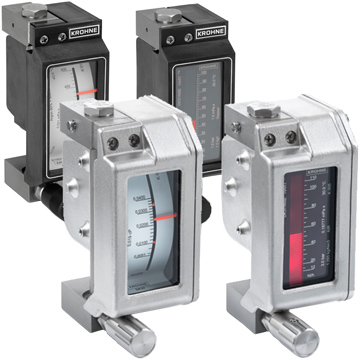

KROHNE DK37 Variable Area Flow Meters

The KROHNE DK37 variable area flow meters are economical and versatile instruments designed to measure the flow of gases and liquids.

The DK37 variable area flowmeters can either be equipped with a mechanical or electronic indicator and are suitable for measuring gases and liquids.

Features

• Upper limit of measurement for liquids: 0.007 to 0.7 gpm
• Upper limit of measurement for gases: 0.009 to 2.825 scfm
• Accuracy: ±4.0% of measured value
• Process temperatures from -112°F to +302°F
• Operating pressure up to 130 bar
• Local indication without auxiliary power
• Rugged, all-metal construction
• 2 limit switches
• SIL 2 compliant acc. IEC61508
• mechanical or digital indicator
• Approved for hazardous areas in accordance with ATEX, FM, NEPSI
• Many different process connections
• Optional differential pressure regulators ensure constant flow
