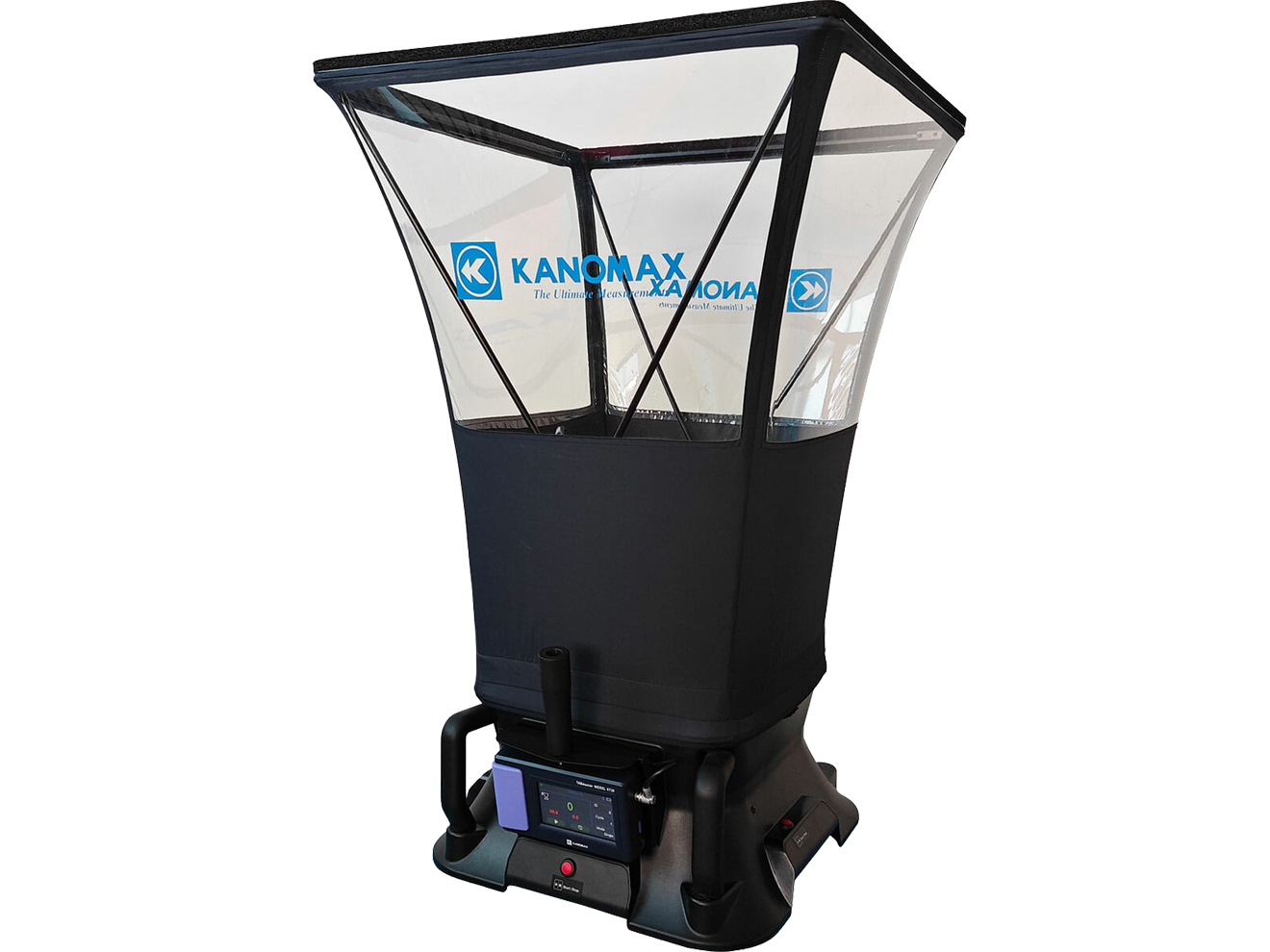

Kanomax Model 6720 TABmaster Airflow Capture Hood

The Kanomax Model 6720 TABmaster Airflow Capture Hood includes an interchangeable hood to sample the air from any duct size. The unit is lightweight and easy to handle, and the full color screen can be tilted for optimal viewing angle at any height. The Model 6720 equips a removable handheld micromanometer with Bluetooth wireless capability.

The unit displays both the direction and velocity of airflow, and is capable of storing up to 8,000 measurements, including multiple measurements under the same ID number. Two apps are available for data management: the Kanomax TAB Viewer (for Android/iOS) and Building Start AirNAB (for iOS). It is approved for HERS (Home Energy Rating System) testing, and a NIST traceable calibration certificate is included.

Applications
HVAC testing, adjusting, and balancing
Air volumetric flow measurements through registers, diffusers, and grilles
Direct readout at supply and return airflow
Air velocity measurements in the duct

Features

• Airflow:
  • Accuracy: +/-3% of reading +/-8m3/h (>85m3/h)
  • Resolution: 1m3/h
• Velocity:
  • Range: 0.15 to 40m/s (pitot tube), 0.15 to 14m/s (velocity grid)
  • Accuracy:
    • Readings: +/-3% +/-0.05m/s
    • 0.25m/s
  • Resolution 0.01m/s
• Differential pressure:
  • Range: -2,500 to 2,500Pa
  • Accuracy:
    • Readings: +/-1.5%
    • +/-0.25Pa
  • Resolution: 0.001Pa
• Temperature:
  • Range: 32 to 140°F (0 to 60°C)
  • Accuracy: +/-0.5°C
  • Resolution: 0.1°C
• Humidity:
  • Range: 0 to 100%RH
  • Accuracy: +/-3.0%RH (10 to 90%RH)
  • Resolution: 0.1%RH
• 4 x AA batteries or AC adapter power supply
• CE-mark standard
