ICON Truflo TK Series Paddle Wheel Flow Meters

The ICON Truflo TK series paddle wheel flow meters provide high accuracy at a low cost and are ideal for plastic piping. The TK series consists of a rugged true union industrial design that is suitable for corrosive applications with virtually no pressure drop. The units of flow measurements are selectable between liters, gallons, and kiloliters. No mounting kits are required; it can be installed horizontally or vertically.

Available in 4 models:

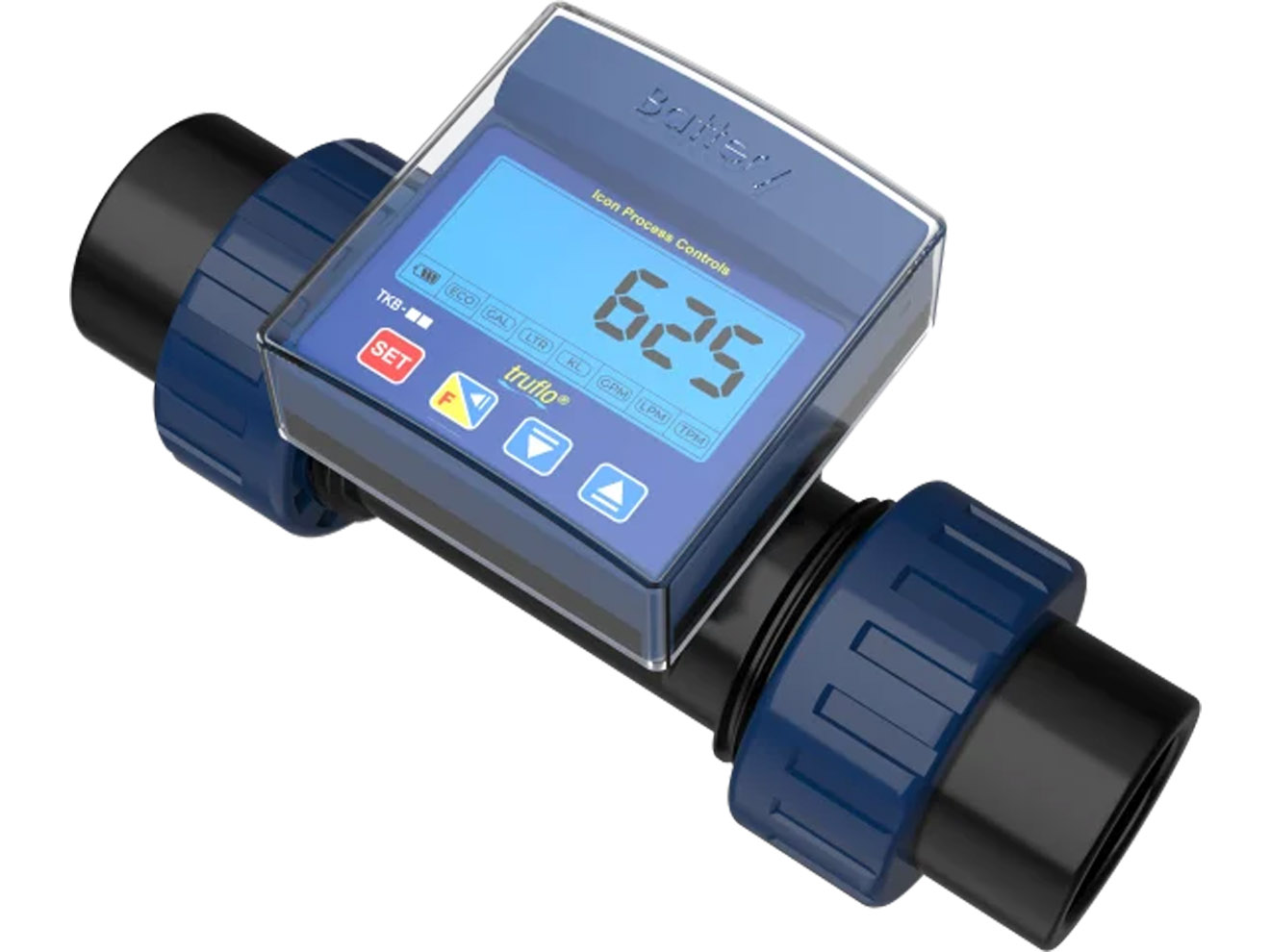

TKB: Battery powered flow/totalizer

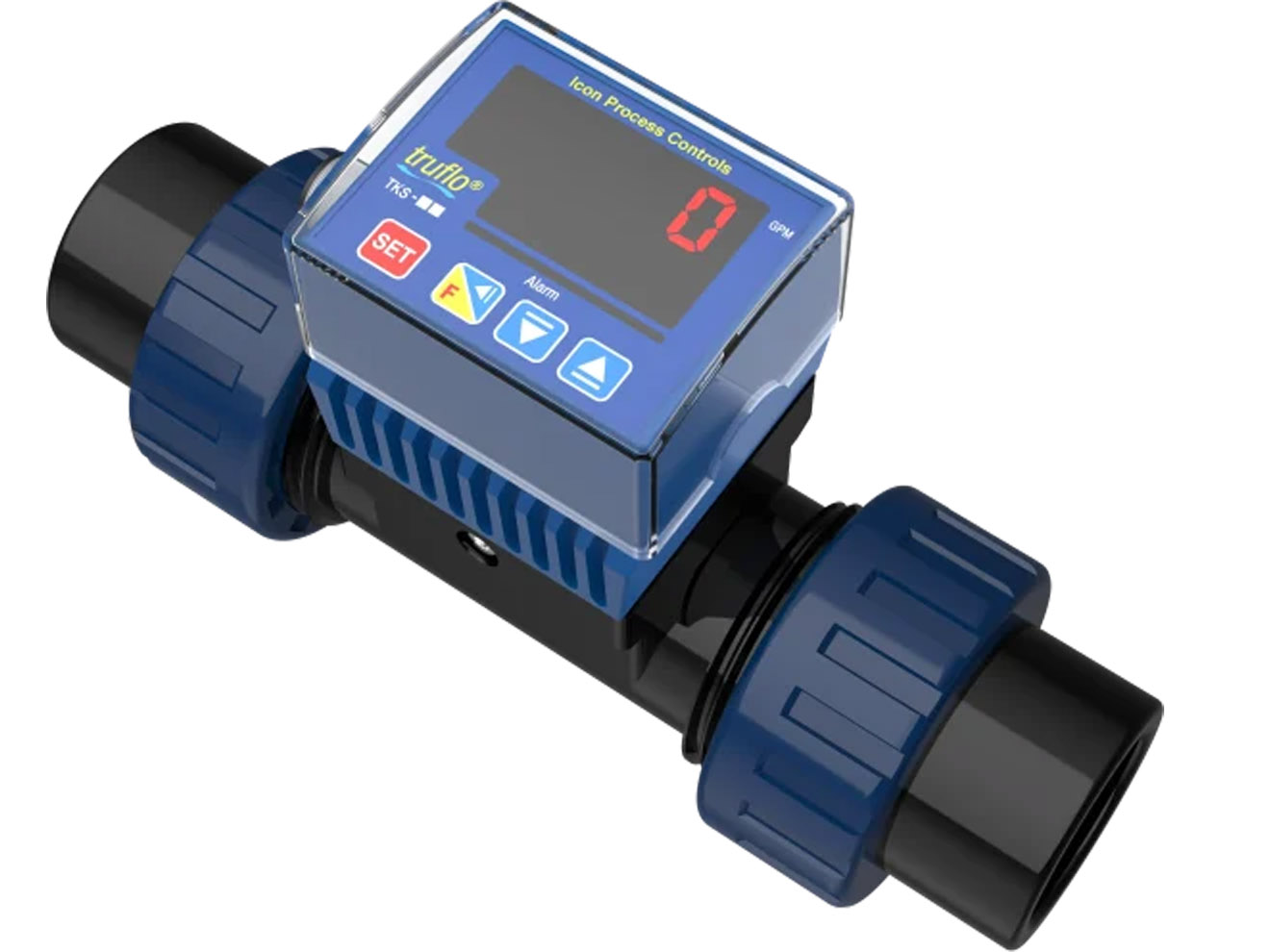

TKS: Flow rate with amp relay and flow rate pulse

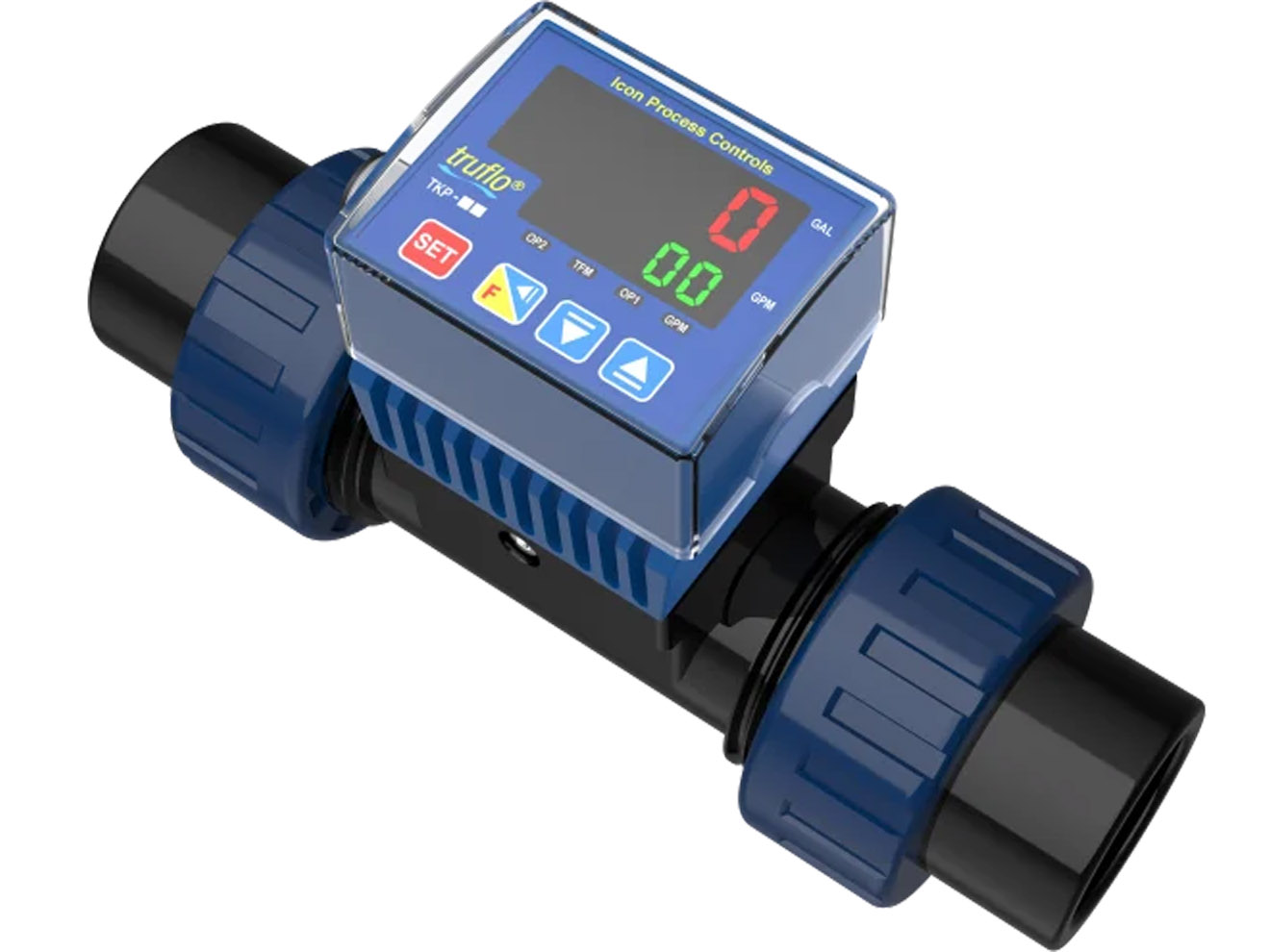

TKP: Flow rate/totalizer with flow rate pulse and flow totalizer pulse

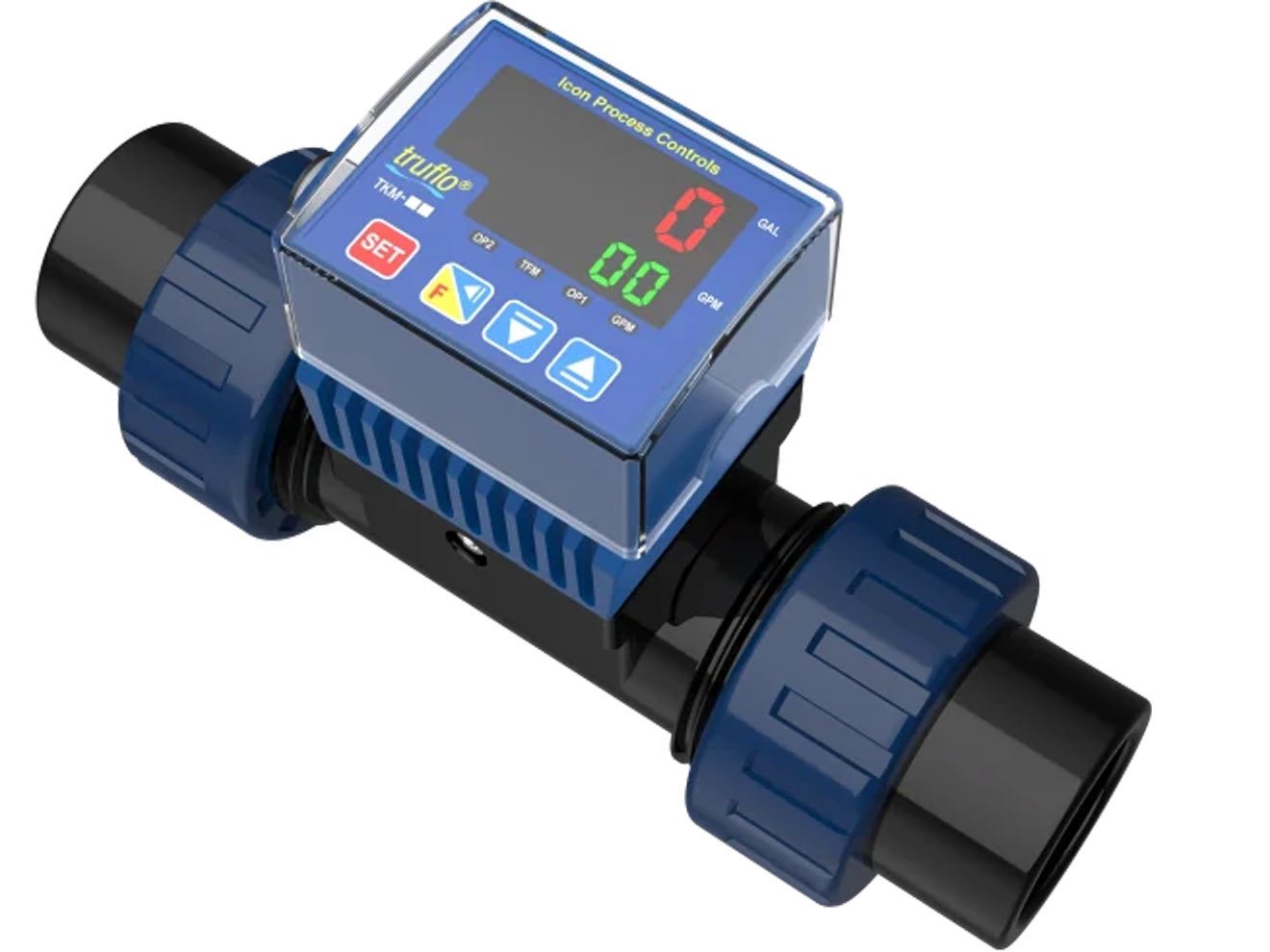

TKM: Flow rate/totalizer, 4-20mA, flow rate pulse, totalizer pulse

Features

• ±0.5% of FS accuracy
• 0.3m/s to 10m/s (0.98 ft/s to 32.8 ft/s) flow range
• Corrosion resistant materials PVDF/PVC/PP/316SS
• No programming
• PVC or CPVC sockets
• NPT or flanged end connectors
• Horizontal or vertical installation
• 1/2 to 4 inch size range
• Low pressure drop
