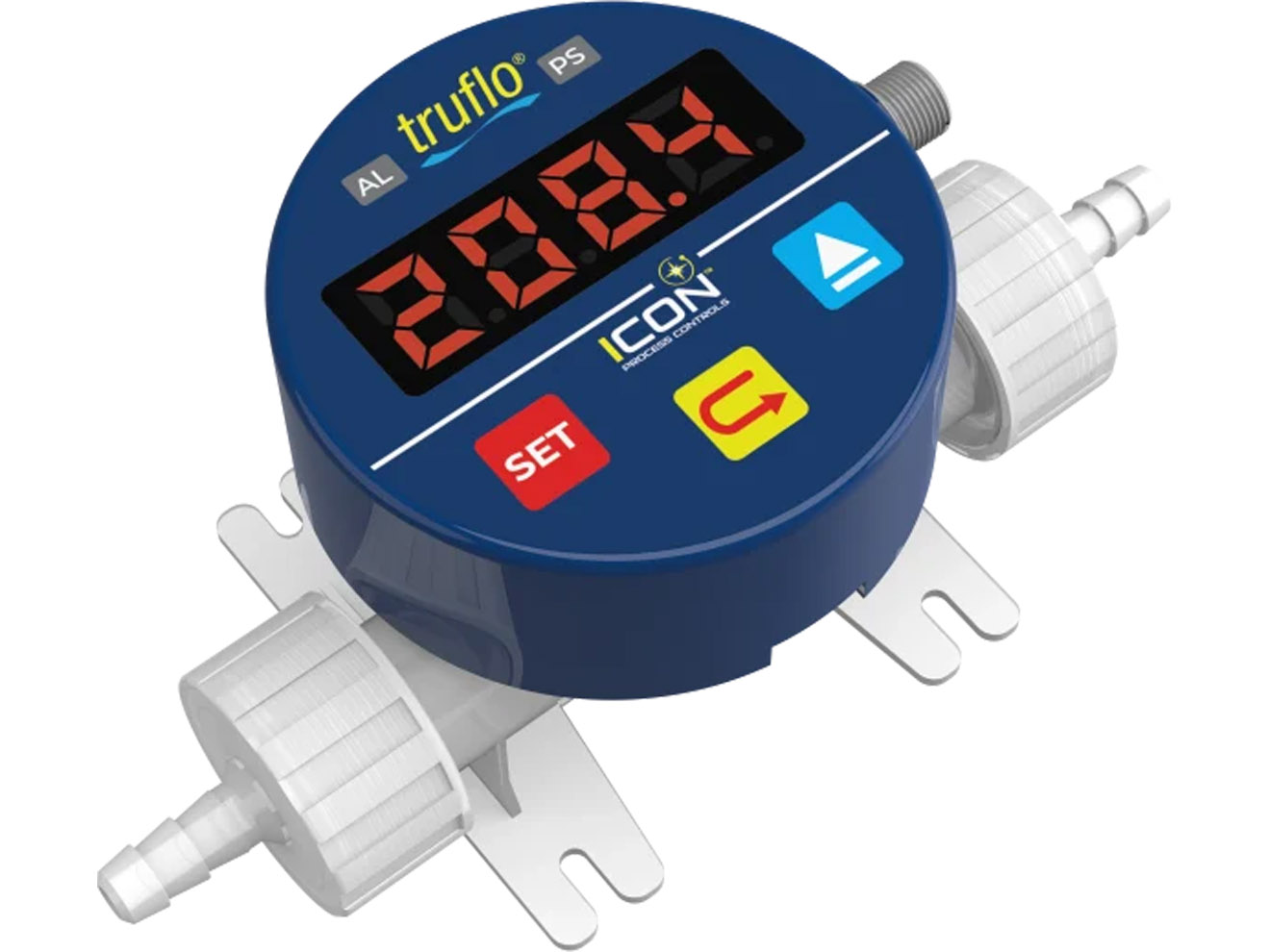

ICON Truflo ProPulse 2 Series Mini Turbine Flow Meter

The ICON Truflo ProPulse 2 Series is a high performance and accurate Ultra-Low Flow measurement that is highly repeatable under the most demanding of industrial environments. The ProPulse 2 operates using a PVDF rotor with encapsulated magnetic inserts, which rotate on a long-wearing set of sapphire bearings designed to provide years of reliability. As the rotor spins, the magnetic field produced by the magnets is picked up via a Hall Effect Sensor, which converts the rotation into a square wave NPN pulse, 4 – 20mA, or RS485 output that can be sent directly to a metering pump or local display.

Applications

Dosing pumps
Liquid chemical skids
Metering
Pulsating flows

Features

• Excellent chemical resistance
• Perfect for metering or dosing applications
• Ultra low flow ranges, 40ml/min and 0.01 GPM
• Hose barb, threaded, flared, and straight pipe end connection options
• NPN or PNP pulse output, 4-20mA and RS485
• Compact, lightweight design
• PPM and PPR:
  • NEMA 4X, IP65
• PPW
  • NEM 4X IP65
• Blind or display options available
