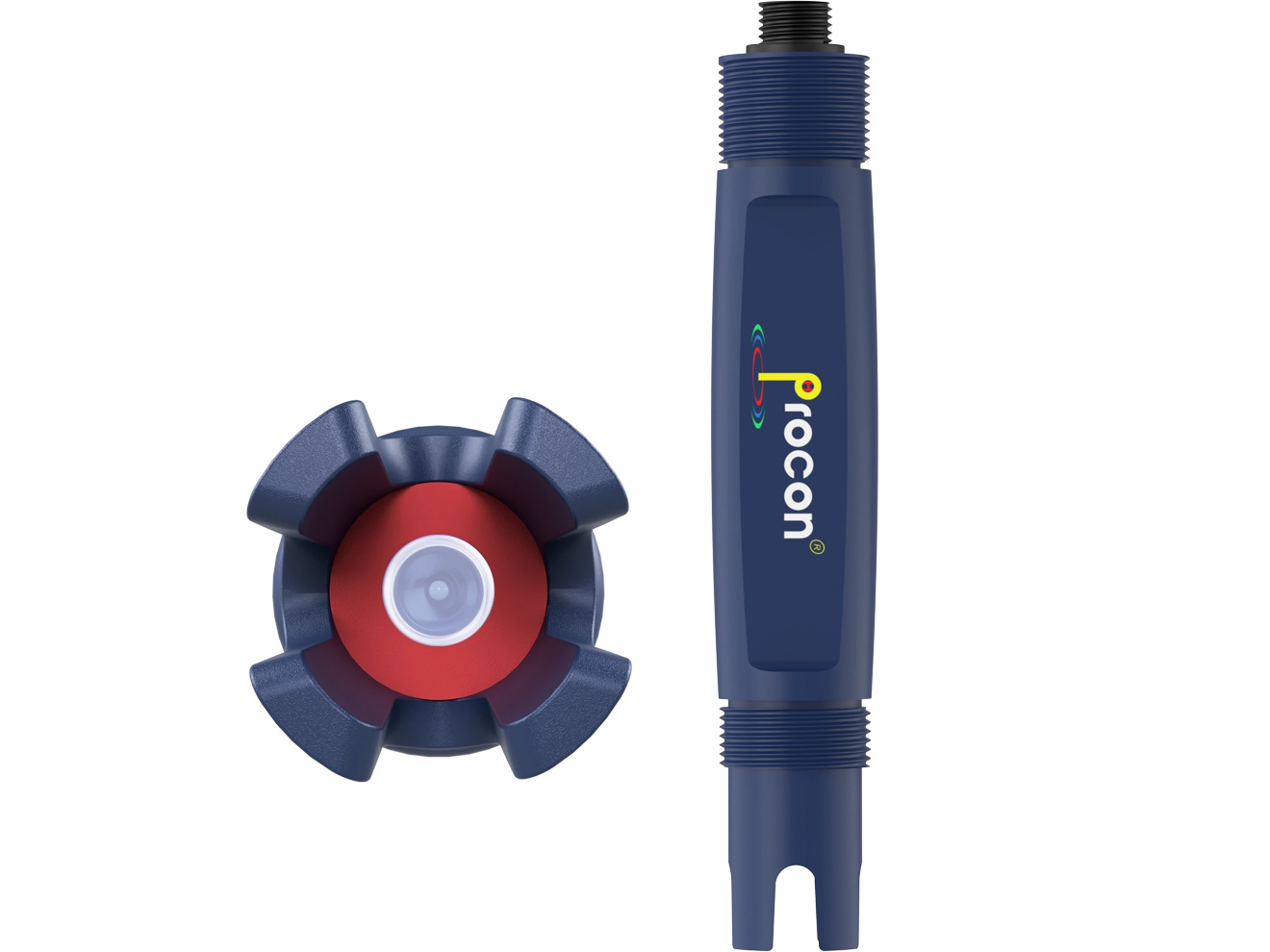

ICON P14C Series pH Sensors

The ProCon P14 Nexus Series offer a combination of durability, functionality, and long term performance; exactly what is required for complex industrial applications. The Nexus reference eliminates reference poisoning. The sensor transmitter is available in flat planar or bulb style design.

The double junction coupled with the solid Nexus KCI infused reference makes the P14C pH sensor an excellent choice for complex process media applications. All measurement functions, measuring electrode, temperature sensor and an inner reference chamber are combined in to one compact body. The 2-wire 4-20mA, 4-wire or 4-20mA and RS485 output options simplify calibration and communication with remote displays and controllers.

Applications

Process Control
Water Quality
Sanitization Systems
Neutralization Systems
Effluent Monitoring
Pool and Spa Control
Aquatic Animal Systems
Cooling Towers

Features

• 4-20mA and RS485 output
• 7.00 ±0.25% accuracy
• Temperature compensated
• Nexus solid KCI reference, eliminates reference poisoning, extends life expectancy
• No preamp required
• 4 wire output
• 3/4″ NPT connection
• 0-14 pH measurement range
• Operating temperature 14 to 176°F
• 150 Psi at 140°F maximum pressure
• Flat planar or bulb style transmitter sensors
• PT100 and Ryton options available, contact for pricing
