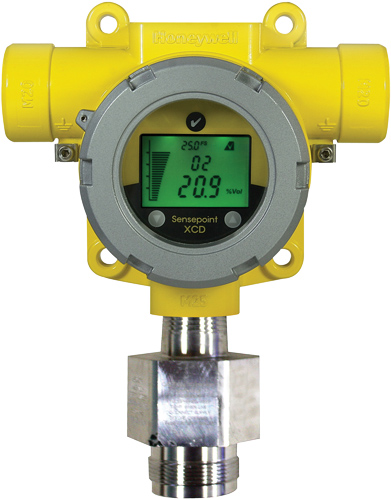

The Honeywell Sensepoint XCD RFD gas monitoring kit is ideal for applications where the sensor is required to be mounted remotely from the transmitter in areas where temperatures are well above ambient (up to 150°C/302°F), or that are difficult to access. The XCD RFD kit combines the XCD transmitter with the 705 combustible sensor and a junction box. This combination from Honeywell offers one man, non-intrusive, operation and reduces routine maintenance time and costs.
The gas range of the Honeywell Sensepoint XCD RFD is user adjustable at the transmitter from 0-100% LEL down to 0-20% LEL. The 0-20% LEL range is particularly suited for use with the Sensepoint high temperature sensors that have thermally matched beads providing optimum accuracy and stability allowing alarm set points as low as 5% LEL. The XCD transmitter features two programmable alarm/fault relays as well as an industry standard 4-20mA output, with optional Modbus RTU. Calibration and relay operation of the transmitter may be adjusted via the transmitters’ backlit LCD and non-instrusive magnetic switches.
