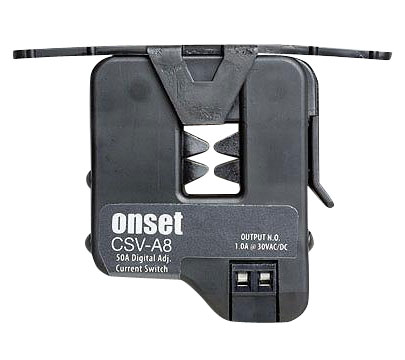

HOBO CSV-A8 AC Current Switch Sensor

The HOBO CSV-A8 AC Current Switch Sensor measure run-time (time-of-use) of equipment when combined with a compatible HOBO Data Logger. This UL-listed sensor has built-in on/off status lights and provides an adjustable current threshold of .5 to 175 amps. Simply install the sensor around a current-carrying wire to the equipment to be monitored and then connect the sensor to a compatible UX90 or UX120 data logger.

Features

• Range: 0.5 to 175 A continuous
• Supply voltage: Induced from monitored conductor, with no external power required
• Isolation: 600 VAC rms
• Status ratings: N.O. 1.0A @ 30 VAC/DC max, not polarity-sensitive
• Dimensions: 5.9 x 5.1 x 2.3 cm (2.32 x 2.0 x 0.92 in)
