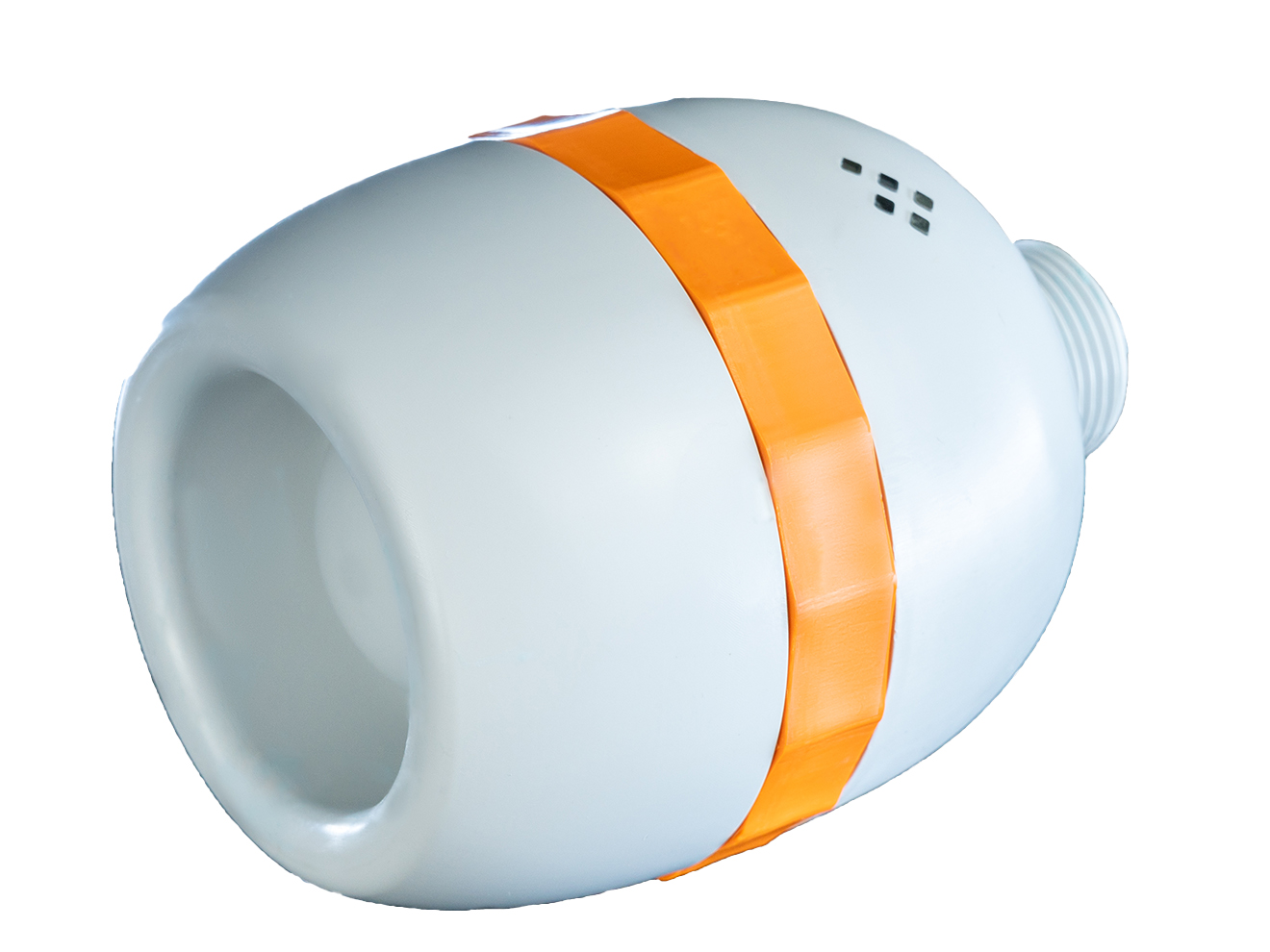

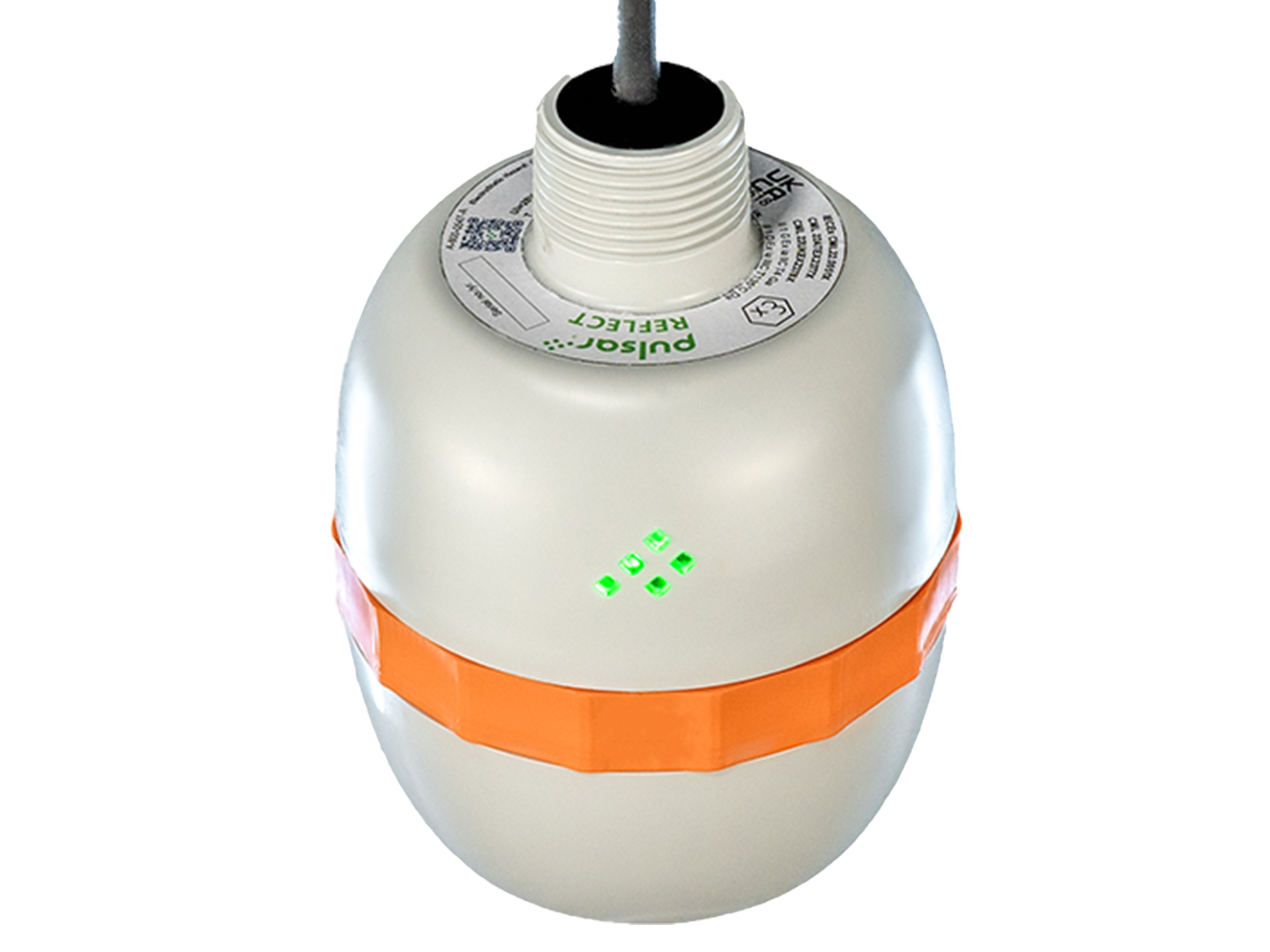

The Greyline Instruments REFLECT Series 2-Wire Radar Level Sensor is a cutting-edge radar level measurement system designed for precise non-contact measurement in both liquid and solid applications. With unparalleled echo discrimination and accuracy, this loop-powered device features a unique design for optimal performance.
Encased in a sturdy enclosure for easy installation, the REFLECT Series features a leveling indicator for liquid setups and Bluetooth radio for local monitoring via any Bluetooth-enabled device. For added security, the signal range is user definable up to 40m, depending on the size of your facility. Communication primarily occurs through a HART modem over a 4-20mA loop. The REFLECT Series uses a web-based app for streamlined usage when changing parameters, accessing trend reports, and viewing echo traces. Once the control app has loaded on a chosen device, the user won’t need to worry about the signal, or regular updates. Just scan the QR code and it takes care of everything else.
This radar system leverages advanced technology with a narrow beam angle, offering a range of 0.075 to 8 or 20 meters. Calibration is simplified, and maintenance-free operation ensures a hassle-free experience. Mounting options include rear and optional front thread mounting, suitable for hazardous areas with ATEX/IECEx certification for all models. For water and wastewater applications, the REFLECT Series can be fitted with an optional Front Nose Thread Adapter, available in both BSP and NPT configurations.
