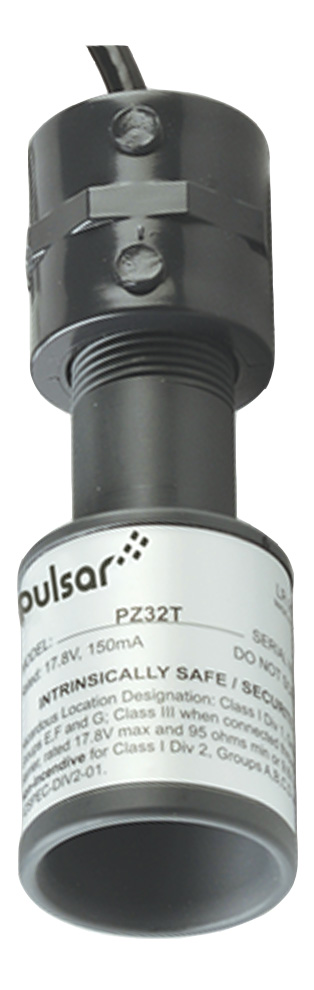

Greyline Instruments PZ32TE Level Sensor

Designed specifically for open channel flow applications, the Greyline PZ32TE level sensor can be installed 12″ or more above the highest water level. It is rated for measurement ranges up to 32 feet.

The Greyline PZ32TE sensor mounts above the flowing liquid so there is no fouling and no maintenance is required. It will not be damaged by accidental submersion.

Features

• 32ft (10m) maximum range
• 12in (406.4mm) minimum range (deadband)
• 42KHz operating frequency
• 8° beam angle
• -40 to 150°F (-40 to 65°C) operating temp
• 20 psi (1.35 bar) max operating pressure
• Exposed materials are all Teflon
• 3/4in NPT sensor mounting
• CSA rated with optional Intrinsic Safety Barrier
  • Class I, Groups C,D, Class II, Groups E,F,G
