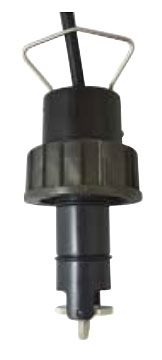

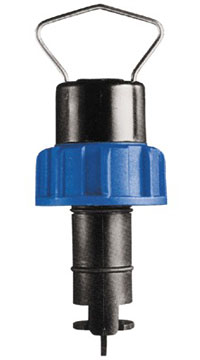

GF Signet 2536 Rotor-X Paddle Wheel Flow Sensor

Simple and reliable, the GF Signet 2536 Rotor-X paddle wheel flow sensor delivers time-honored performance. The highly repeatable and rugged GF Signet 2536 Rotor-X paddle wheel flow sensor offers exceptional value with little or no maintenance required. Installation of the GF Signet 2536 Rotor-X paddle wheel flow sensor is simple with GF Signet’s comprehensive line of fittings for all pipe materials in sizes from DN15 to DN1000 (0.5 to 36in.). The 3-2536 has a process-ready open-collector signal and can operate to flows as low as 0.1 m/s (0.3 ft/s).

The GF Signet 2536 Rotor-X paddle wheel flow sensor has a unique “open-cell” rotor design, which eliminates cavitation at higher flow rates.

Applications for the GF Signet 2536 Rotor-X Paddle Wheel Flow Sensor
Pure water production
Filtration systems
Chemical production
Liquid delivery systems
Pump protection
Scrubber systems
Water monitoring
Not suitable for gases

Features

• PVDF, PVC or Polypropylene molded sensor body
• Simple insertion design
• Separate versions for remote and integral installations
• Wide turndown ratio of 66:1 for 2536, 20:1 for 515
• Installs into pipe sizes from 1/2 to 36in (DN15 to DN900)
• Process ready signal

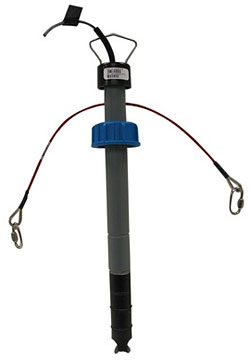

• Extended length for wet-tap installations available
