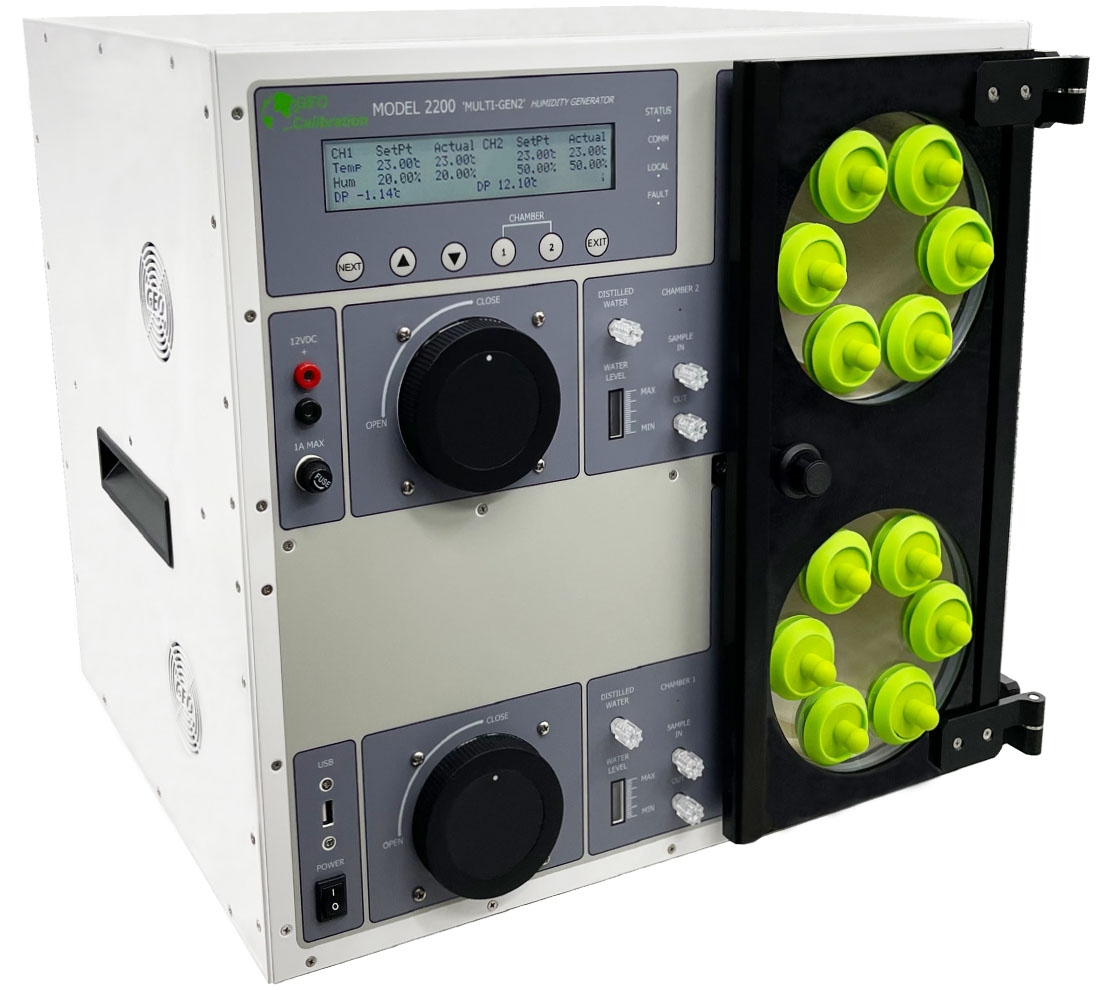

GEO Calibration Multi-Gen2 Humidity Generator and Calibrator

The GEO Calibration Multi-Gen2 Humidity Generator and Calibrator is designed for two-point simultaneous calibration with high calibration volume, high accuracy, and fast response time. The Multi-Gen2 has a compact benchtop design with high-level throughput and can manage two or three different setpoints without any delay.

Features

• 5 to 55°C temperature range
• 5 to 95% RH humidity range at 23°C
• ±0.1°C temperature accuracy
• ±1.0% relative humidity accuracy at 23°C
• PID Controller
• 0.10°C temperature uniformity
• 0.30% RH uniformity at 18-28°C
• 0.05°C temperature stability
• 0.15% RH stability at 18-28°C
• Ramp/soak rate of change:
  • Temperature high to low, 1.50°C per minute
  • Temperature low to high, 5.00°C per minute
  • Humidity high to low, 5.00% RH per minute
  • Humidity low to high, 10.00% RH per minute
