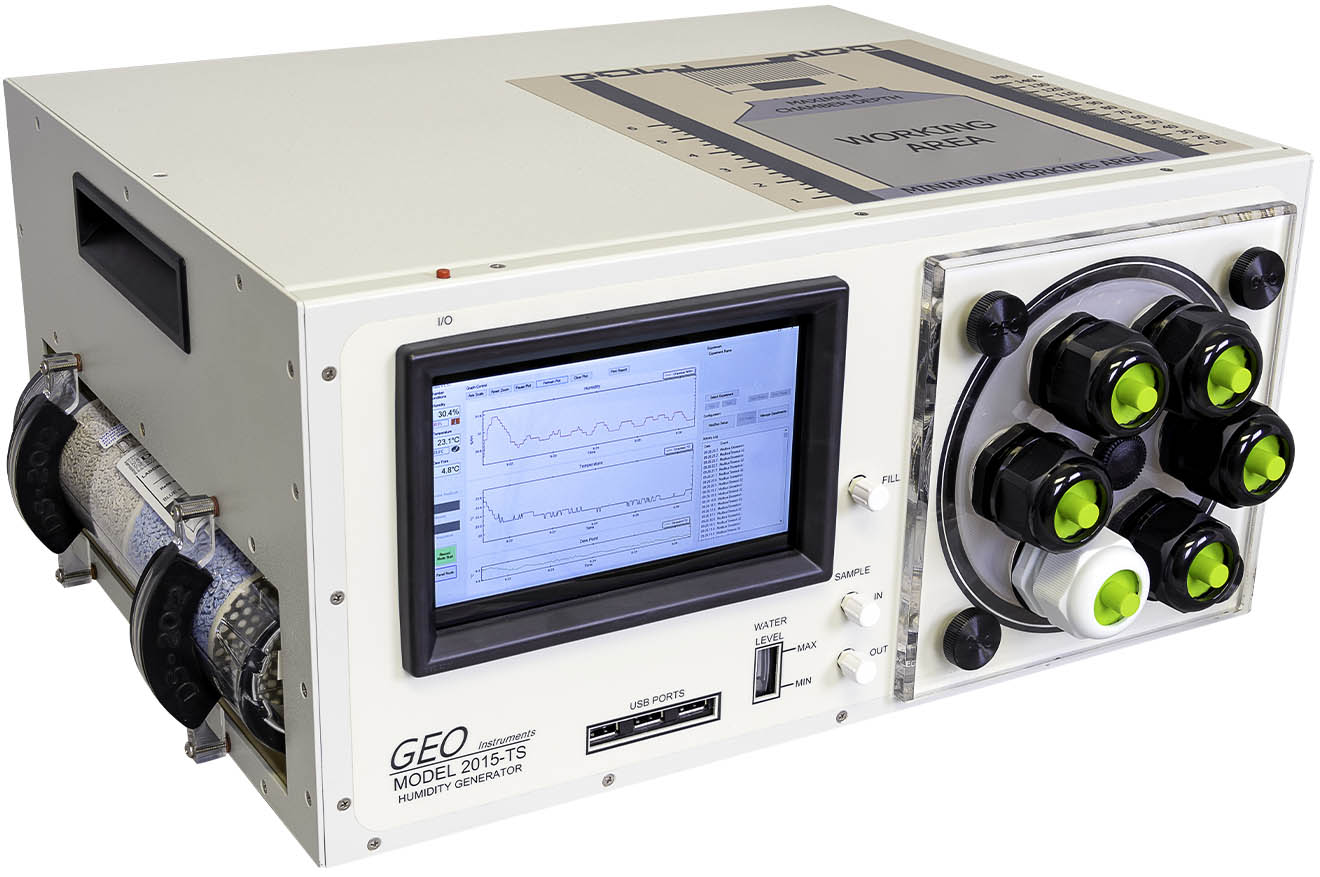

GEO Calibration 2015 TS Humidity Generator and Calibrator

The GEO Calibration 2015 TS humidity generator and calibrator is a lightweight, highly accurate, portable humidity calibrator with a large, user-friendly touch screen, and advanced electronics and connections. The 2015 TS humidity calibrator generates and maintains a controlled humidity and temperature environment for testing or calibrating humidity and temperature sensors, also known as hygrometers. It also features remote login capabilities, custom doors for dataloggers and chart recorders, and the ability to perform automatic charting of probe data.

The Model 2015 TS functions through the use of a dual PID controller. This controller takes the humidity and temperature values from an internal capacitance probe and performs calculations that are then used to generate the user-entered humidity and temperature set points.

Applications

Streamlined charting of probe data
Probe database management and probe history reference

Features

• 5 to 55°C temperature range
• 5 to 95% RH humidity range
• ±0.1°C temperature accuracy
• ±1.0% relative humidity accuracy
• PID Controller
• 0.10°C temperature uniformity
• 0.30% RH uniformity at 18 to 28°C
• 0.05°C temperature stability
• 0.15 % RH stability at 18 to 28°C
• Ramp/soak rate of change:
  • Temperature high to low, 1.50°C per minute
  • Temperature low to high, 5.00°C per minute
  • Humidity high to low, 5.00% RH per minute
  • Humidity low to high, 10.00% RH per minute
