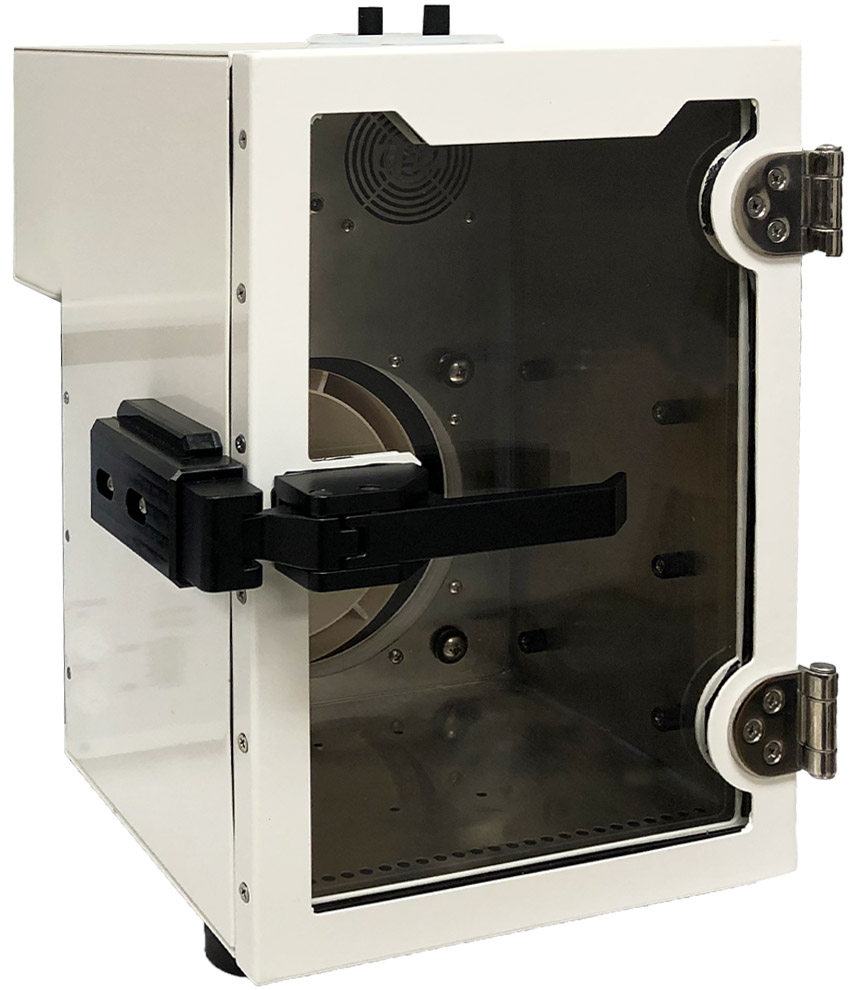

GEO Calibration 2000 SP Standard Expansion Chamber

GEO Calibration 2000 SP Standard Expansion Chamber generates and maintains a controlled humidity and temperature environment for testing or calibrating humidity and temperature sensors, also known as hygrometers. The humidity calibration range is 20 to 80%, while the temperature range is +/-5°C from room temperature. The expansion chamber can calibrate many hygrometer types, including probes, data loggers, chart recorders, and other assorted hygrometers.

Features

• ±5°C ambient temperature
• 20 to 80% RH humidity range
• ±0.50°C temperature accuracy
• ±3.00% RH accuracy at 23°C
• 8-liter effective working volume
• 0.50°C temperature uniformity
• 3.00% RH uniformity at 23°C
• 0.30°C temperature stability
• 1.00% RH stability at 23°C
• Ramp/soak rate of change:
  • Temperature high to low, 1.50°C per minute
  • Temperature low to high, 5.00°C per minute
  • Humidity high to low, 1.00% RH per minute
  • Humidity low to high, 1.00% RH per minute
